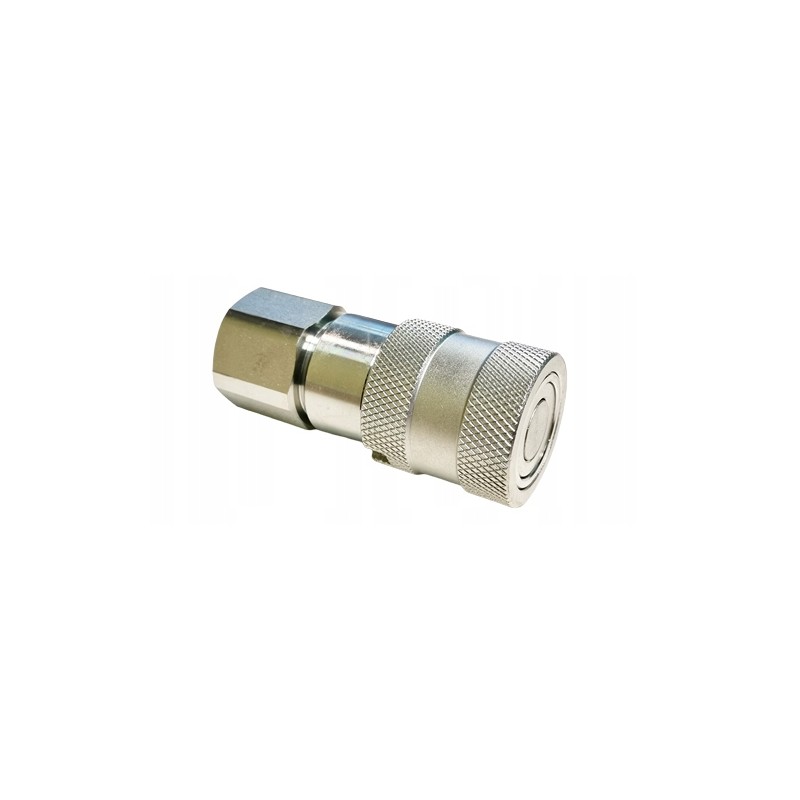

Quick flat connector with dry cut-off socket 1 2

Dry break socket (ISO 12.5) with BSP internal thread 1/2' -14

Application: so-called "dry" quick connector, the advantage of which is a flat connection surface that allows easy cleaning and minimizes oil leakage during disconnection. Designed for hydraulic installations, recommended for agricultural, construction and industrial machines.

Outer diameter of the socket's movable sleeve - 38 mm, outer diameter of the plug - 24.5 mm

Technical data: Standard: ISO 16028 - HTMA (DN13) Closure: flat seal Locking: centrifugal balls Material: steel Finish: Zn-Fe (Cr III) Threads: BSP 1/2' - 19 Standard seal: NBR Operating temperature: -25°C to +100 °COptional sealing: FKM, EPDM or other maximum flow: 90 l/min Operating pressure: 250 bar

Connection under pressure: not allowed

ART - ISO-F SOCKET /12/ BSP 1/2
