Pav101345 tip dn10 13 16 orfs 45

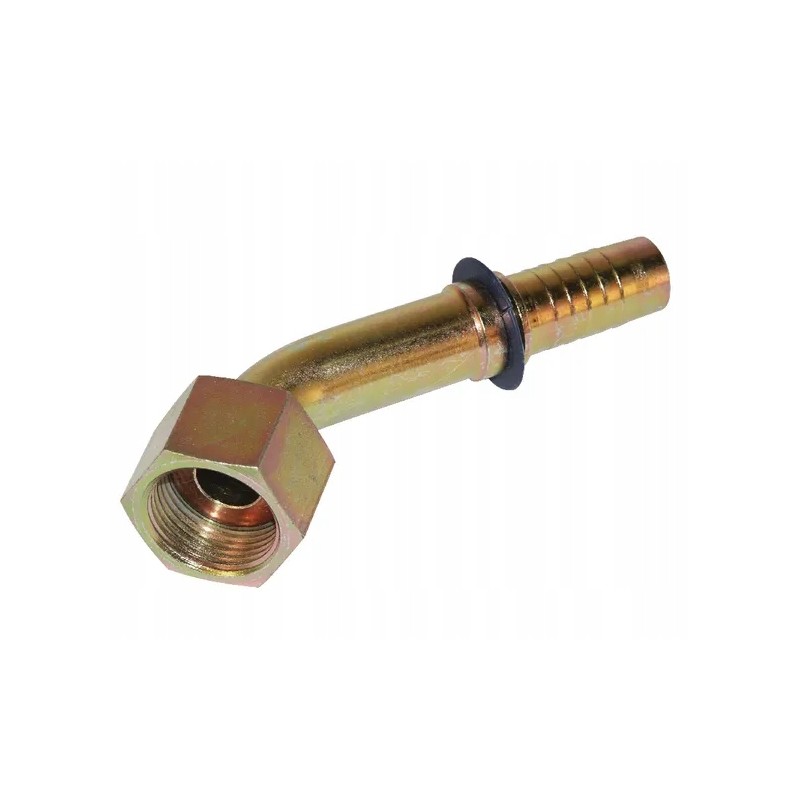

PAV101345 Adapter DN10-13/16 ORFS-45° Product details

O-ring

Shape

Elbow - 2 sides connection

Connector type no. 1

Swivel nut

Connector type no. 1 - male/female

Female

Connector type no. 1 - code

ORFS

Length of connector no. 1

46.3 mm

Connector thread diameter

13/16 inch

Connector thread type

UNF

Wrench size for connector no. 1

24.0 mm

Connector type no. 2

Hose connector

Connector Type No. 2 - Male/Female

Male

Connection Diameter No. 2

3/8 inch

Connection Diameter No. 2

10 mm

Angle

45 °

Material

Steel

Surface Treatment

Zinc Plated

White Passivated

OE Reference Number

H1222443-06080M

Connection

UNF union nut with flat seal (ORFS)

Application

Only for flat seals (ORFS)
