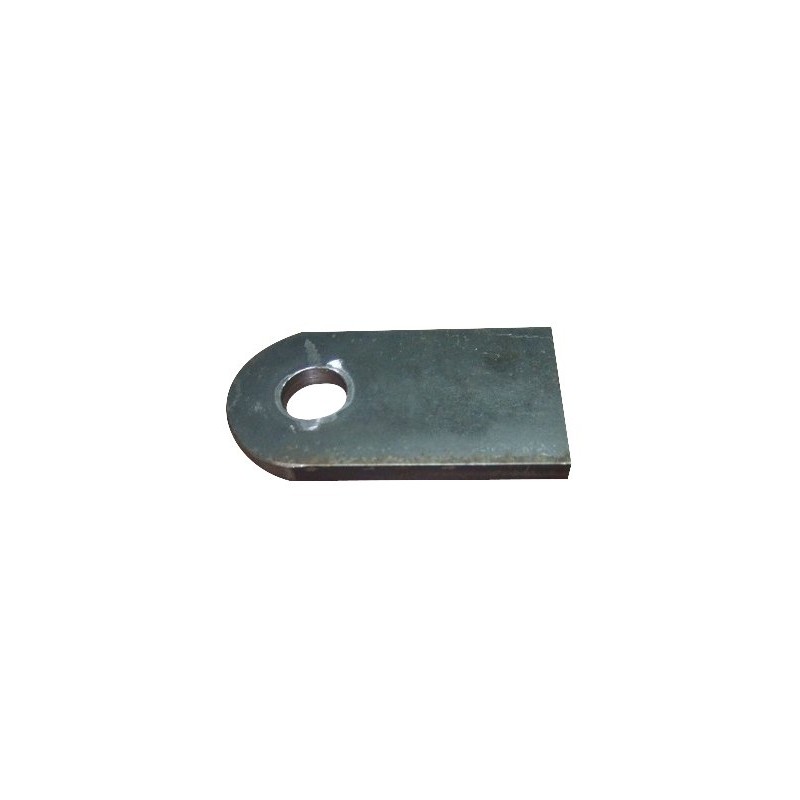

Mounting the actuator eyelet for welding, diameter 20

Eye for mounting a hydraulic cylinder fi 20 mm Manufacturer: SM-G (SKRAW MET GROUP) SKRAW MET CODE: [2116] Welding eye for mounting a hydraulic cylinder FI 20 mm.

Dear customer! The nominal tolerance range of the hole made can be up to -0.5 mm (i.e. FI 19.5 mm - 20 mm), so the pin can fit quite tightly.

Technical specifications: Total height: 140 mm< p>

Ear width: 70 mm

Hole diameter: 20 mm

Distance from the center of the hole to the base: 105 mm

Distance from the center of the hole to the top of the arch: 35 mm

Ear thickness: 10 mm

You can find other actuator mounting components in our other auctions.
