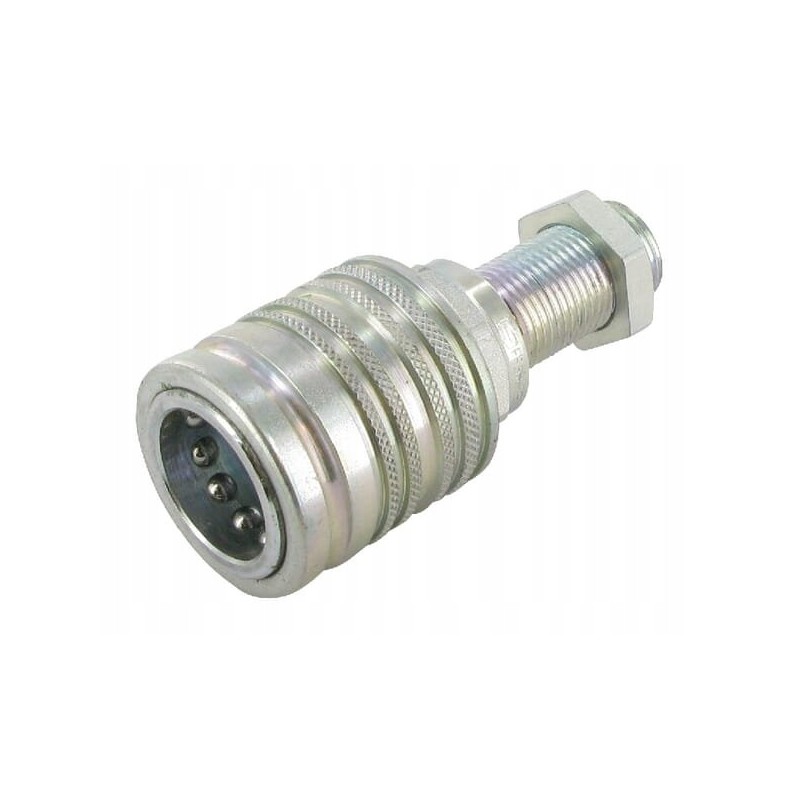

Quick connect cpv socket 1 2 bulkhead thread

Quick connector CPV socket 1/2' bulkhead thread M20x1.5 20S Parameters

Part number: CPV0862015F

Unit: piece

Manufacturer: Faster

Size (code): BG 3

Size: 1/2 inch

Shape: Straight - 2 sides connection

Connector type no. 1: Quick connector

Connector no. 1 thread type - code : 06

No.1 Male/Female Connector Type: Male

No.1 Connector Diameter: 40mm

No.1 Connector Thread Diameter: 20mm

O.D.: 1.57 inch

Material: Carbon Steel

Surface Treatment: Passivated on white

Operating temperature max.: 125 °C

Operating temperature min.: -25 °C

Quick connector lock type: Balls around the circumference

Connector no. : Pull to Disconnect

Series: CPV

Valve Type: Poppet

Weight: 303.9 g

Connector No. 1 Thread Type: Metric

Connector No. 2 Type: Thread

Connector No. 2 Male/Female Type: Male

Connection Diameter No. 2: 12 mm

Thread diameter of connector No. 2: M20

Thread pitch of connector No. 2: 1.5 mm

Thread type of connector No. 2: Metric

Possibility of connection under pressure: No

ISO standard: 7241-A

Total length: 3.4 inch

Total length [L1]: 86.3 mm

Application

- Universal use

- Agricultural machinery

- Mineral oil based fluids Properties

- Push & Pull principle

- Axial actuation of the locking sleeve in both directions (double acting)

- Tear-off function

- Induction hardening in places exposed to rapid wear Technical information

- Connection is made by pressing the plug (one-handed operation). Seal material

- Nitrile rubber [NBR]

- Teflon (PTFE)

Connector #1 key size

- 27 mm

- 27 mm
