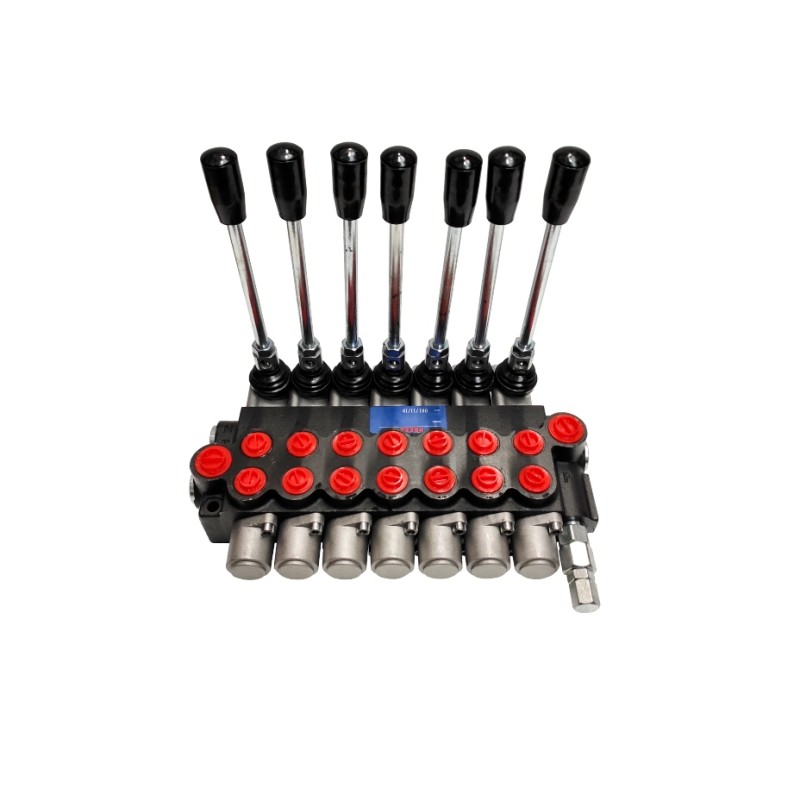

Control distributor 7 sections 40 l min

DISTRIBUTOR 7 SECTIONS, LEVER CONTROL, FLOW 40 L/MIN. Maximum pressure: 250 bar

Maximum flow: 40 l/min

Section spacing: 35 mm

Threads on the section: 3/8'

Supply and return: 1/2'

Solid and compact construction

Easy installation

The design allows for series connection with another distributor using a pressure screw

Possibility to independently adjust the position of the lever in relation to the distributor

Equipped with a safety valve

The levers have three positions on a spring, i.e. they automatically return to the neutral position immediately after removing your hand from them:- Position 0 neutral - the oil is directed back to the tank [position as in the photo on the left].

- Position 1 working position (up) - oil flow - [in the case of e.g. an actuator, the piston rod extends].

- Working position 2 (down) - oil flow - [in the case of e.g. an actuator, the piston rod retracts]< p>

Connection:

The distributor's connection diagram is included in the package with the purchase.

Possible configurations of the lever arrangement in relation to the distributor:
