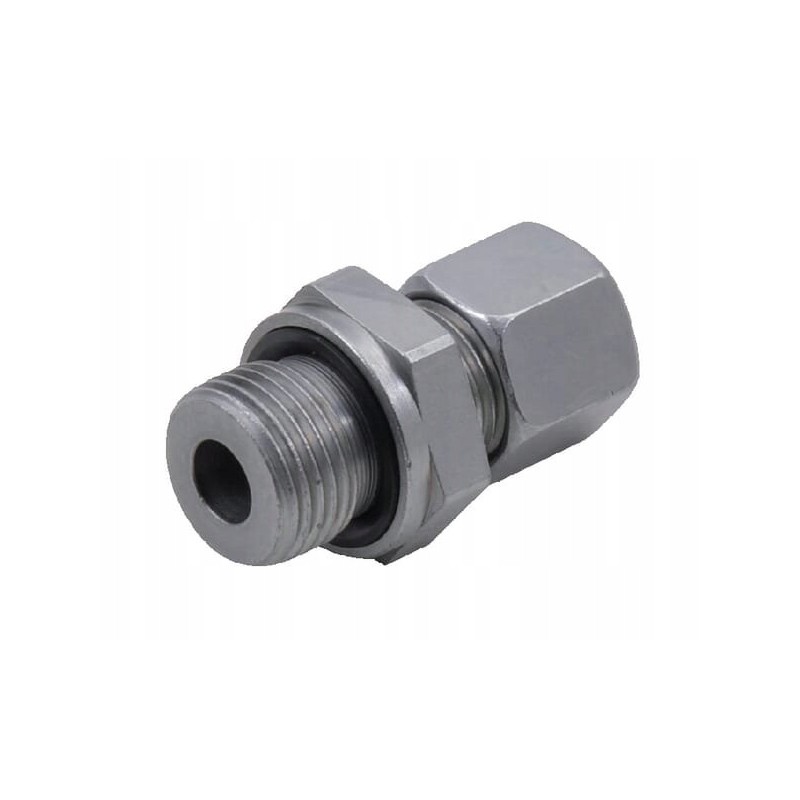

Straight screw-in connector 12l m16 gev12lm16w

Straight screw-in connector 12L M16 Parameters

Part number: GEV12LM16WD

Unit: piece

Manufacturer: Voss

Shape: Straight – 2 connection sides

Connector type: Cutting ring

Connector type - male/female: Male

Connection diameter: 12 mm

Thread diameter connectors: M18

Connector thread length [K]: 12 mm

Connector No. 1 thread pitch: 1.5 mm

Wrench size for connector [S1] : 22 mm

Connector No. 2 Type: Sealing Ring

Connector No. 2 Type - Male/Female: Male

Connector No. 2 Thread Diameter: M16

Connector 2 thread pitch: 1.5 mm

Connector 2 thread type: Metric

Connector 2 [S2] wrench size: 22 mm

Pipe diameter: 12 mm

ISO standard: 228

Max working pressure: 400 BAR

Seal material: Nitrile rubber [NBR]

Series: L

Specifications

- 2S cutting ring

Application

- Hydraulic hose

- Hydraulic lines

Properties

- Optimal connection with the cutting ring and perfect operation

- High corrosion resistance

Technical information

- Stainless steel version available on request

- Viton gasket available on request

Dimension from the axis of the connector to the end of the next connector [L2]< p>

27 mm

Dimension from the axis of connector No. 2 to the end of the next connector [L1]

12.5 mm

DIN standard

- 2353

- 228

- 3852

- 2401

Surface treatment

- Zinc

- Nickel-plated
