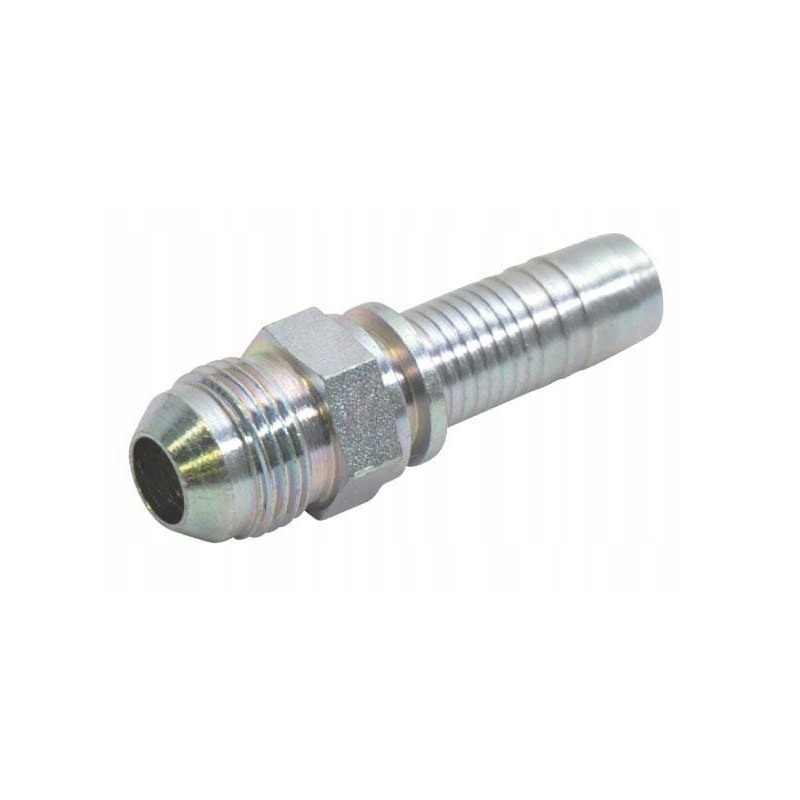

Tip dn16 7 8 unf

DN16-7/8 UNF fitting Parameters

Part number: PC1614

Unit: Piece

Manufacturer: Alfagomma

EAN: 8716106788040< p>

Cone angle: 37 °

Shape: Straight - 2 sides of connection

Connection type no. 1: Thread

Connection type no. 1 - male/female: Male

Connector type no. 1 - code: AGJ

Connector no. 1 length: 34.3 mm

Connector thread diameter: 7/8 inch

Connector Thread Type: UNF

Connector No. 1 Wrench Size: 24.0 mm

Connector No. 2 Type: Hose Adapter

Connector No. 2 Type - Male/Female: Male

Connection No. 2 Diameter: 5/8 inch

Material: Steel

Connection: JIC Male Thread ( UNF thread) with external cone 74°

Type: AGJ

Surface treatment

- Galvanized

- White passivated

Application

Bolted connections on the folded edge of the sheet metal
