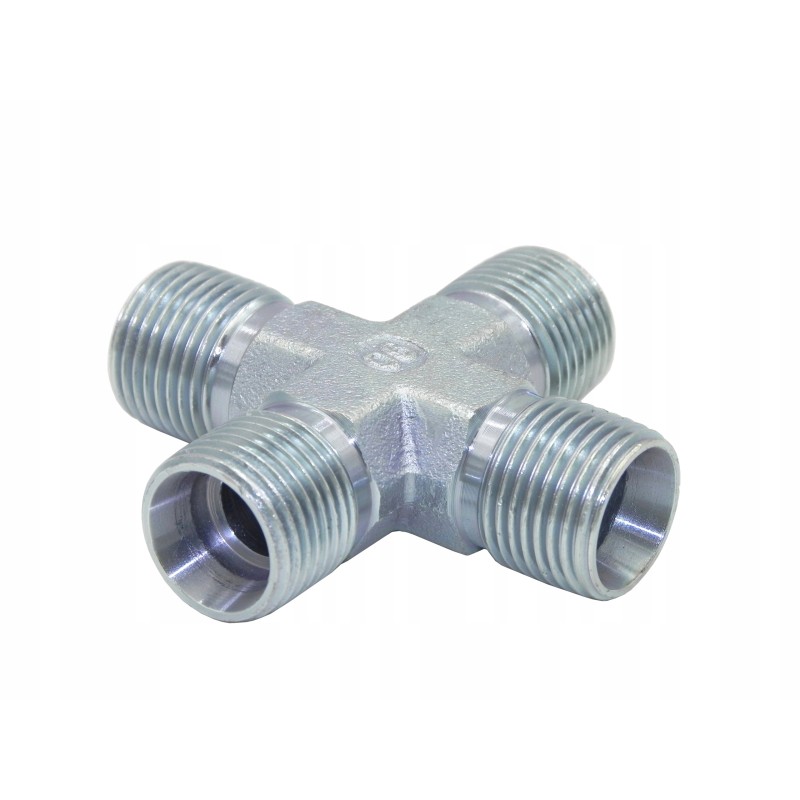

HYDRAULIC QUARTER CONNECTOR 4x M14x1.5 8L Application: Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry. Quad-joint, standardized, light version with conical self-sealing clamp when tightening. Designed to connect four hydraulic lines or to connect with other connectors with the same conical system.
It does not have rubber seals or places for a seal, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. Connections that can be purchased at our other auctions are used for this purpose.
Technical data:
Thread on all sides: external metric 14x1.5 8L
Version: light
Nominal pressure: 180bar
Maximum pressure: 230bar
Liquid type: hydraulic oil
Material :
welded steel, galvanized, corrosion-resistant
