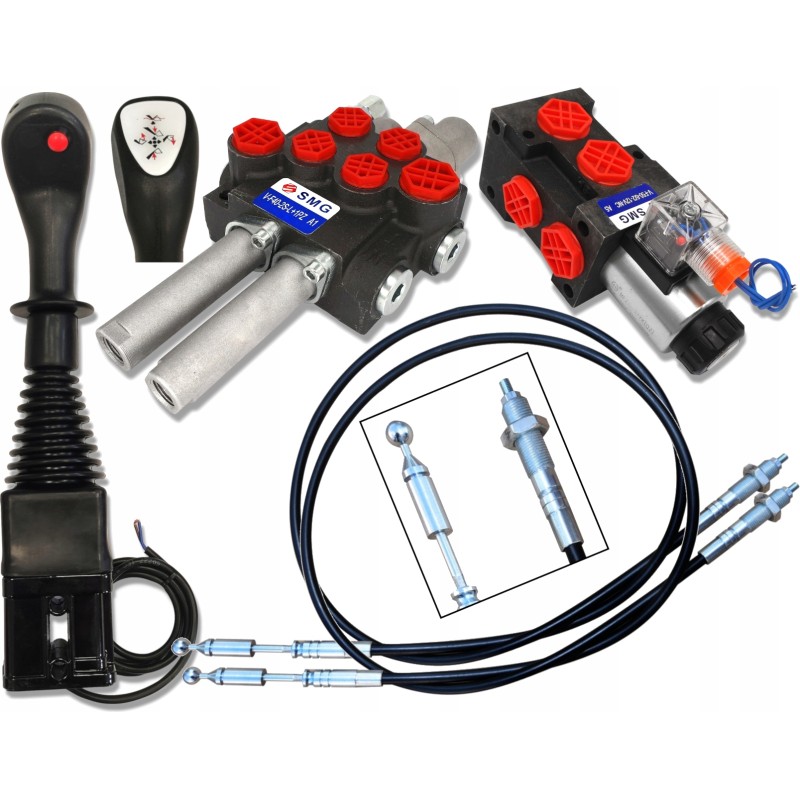

Set of turns 40l 3 sec joystick latch 1p cables 2m

3-section hydraulic set 40L/min for TURA with floating section and latch for TURAKOD SKRAW MET: [8466] Manufacturer: SM-G (SKRAW MET GROUP) Set: ball joystick with 1 button [0171]

2x cable, 2m long [0203]

hydraulic distributor for 2-section cables 40L/min - floating section + latch [1720]

solenoid valve - divider 6/2 12V 50L/ min [2547]

The set is perfect for hydraulically powered machines and devices. It guarantees effective control of two sections in TUR front loaders (frame lifting and bucket tilt) and one additional section after pressing a button.

The set has many advantages that influence dynamic, fast and safe control of the machine.

It can be used in agriculture, horticulture, forestry and construction. It is adapted to work in: agricultural machines, tractors, sprayers, rounds, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

2-SECTION HYDRAULIC DISTRIBUTOR, 40L FOR CABLES + SECTION FLOATING WITH 1-WAY LATCH (K16+8) Manufacturer: SM-G (SKRAW MET GROUP) High-quality, monoblock distributor with a parallel system with a floating (absorbing) chamber.

It is characterized by a compact structure and stable operation. and high versatility.

Enables the control of two double-acting or (after plugging one of the ports) single-acting actuators.

It is possible to connect them in series to an existing system (pressure sleeve required).

Control from the cab using cables and joystick.

!ATTENTION! In a given distributor, the section with a latch is located in only one section with a FLOATING FUNCTION

Universal distributor, used in various types of machines such as: Cyclops

Tury

Loaders

Plows

Forklifts and many others

Three-position slider (1 - 0 - 2) with a latchwith a latch, i.e. it holds the position in the working position on its own

Neutral position 0 (joystick set vertically - the cable is slack) the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (joystick set diagonally forward) the actuator piston rod extends.

Working position 2 (joystick set obliquely to the rear), the actuator piston rod retracts.

Three-position slider (1 - 0 - 2) spring-loaded and returns to the vertical position

Neutral position 0 (joystick set vertically - the cable is slack) the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (joystick set diagonally forward) the actuator piston rod extends.< p>

Working position 2 (joystick set obliquely to the rear), the actuator piston rod retracts.

Connection: Power supply (P) BSP 1/2''

Back (T) BSP 1/2''

BSP 3/8'' section outlet

BSP 1/2'' connection

Technical specifications: Oil flow : 0 - 40 l/min

Maximum working pressure: 250 bar

Permissible ambient temperature: -40℃ to +60℃

Permissible oil temperature: - 15℃ to +80℃

Equipped with a safety valve.

Solenoid valve 6/2 12v 50 l/min with plug Manufacturer: SM-G (SKRAW MET GROUP) This solenoid valve is the perfect solution when the hydraulic distributor used (to control the actuator) lacks an additional section to control another actuator.

Used for hydraulic control, most often with a 2-section distributor, as a 3-section, e.g. gripper, crocodile, etc.

Series connection is possible.

High-quality solenoid valve, characterized by compact structure, stable operation and high versatility.

Application: The distributor is perfect for machines and hydraulically powered devices.

It can be used in agriculture, horticulture, forestry and construction.

Example of use of the solenoid valve: two double-acting hydraulic cylinders controlled by one section in the distributor.

Thanks to it (using an electric impulse caused by the 'P' button), we can control two independent double-acting actuators.

This button is usually located on the control element, i.e. a lever or joystick.

It should be taken into account that it does not allow to control two actuators at the same time.

Technical data: Threads (BSP): 1/2'

Maximum oil flow : 50 l/min

Voltage: 12 V

Maximum operating pressure: 315 bar

Permissible ambient temperature: -40℃ to +60℃

Permissible oil temperature: -15℃ to +80℃

CONNECTION:P1 - P2 POWER SUPPLY / RETURN (regardless of whether P1 or P2 will be return or supply)A - B - C - D OUTPUTS ON RECEIVERS (ACTUATORS) JOYSTICK WITH 1 BUTTON Designed for mechanical control of frame lifting, shovel inclination and bale grabber or crocodile.

A solid joystick enabling mechanical control of three-way hydraulic control valves of TURA (loader) using two cables and one button.

Allows for remote control (from the cab) of distributors that are located outside the cab.

Application: Dedicated to controlling TURA 1, 2, 3 in tractors such as:

URSUS

ZETOR

MF and derivatives.

Perfect for hydraulically powered machines and devices.

Can be used in agriculture, horticulture, forestry and construction.

It is adapted to work in various types of machines, such as: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, industrial machines and others.

Easy to install.Technical specifications: Operating temperature: from -30°C / to +80°C

Cable opening Φ14 mm

Lock lever

M8 self-locking pin for cable fixation

Material:ergonomic, hardened plastic handle

Aluminum alloy base

Joystick has a safety mechanism (2) that allows you to block the movements of the joystick head to prevent accidental activation: Locked joystick headUnlocked joystick headCable to control the ball-type distributor 2m POLISH product SUPER DURABLEThe cable is perfect for controlling hydraulic distributors used in hydraulically powered machines and devices controlled by a joystick/lever.< p>

It can be used in agriculture, horticulture, forestry, construction and broadly understood industry.

Ends: The end of the cable on the joystick side ended with a ball with a diameter of 14mm

The end of the cable from the distributor side, cable body thread M16x1.5, slider thread M6x1.6
