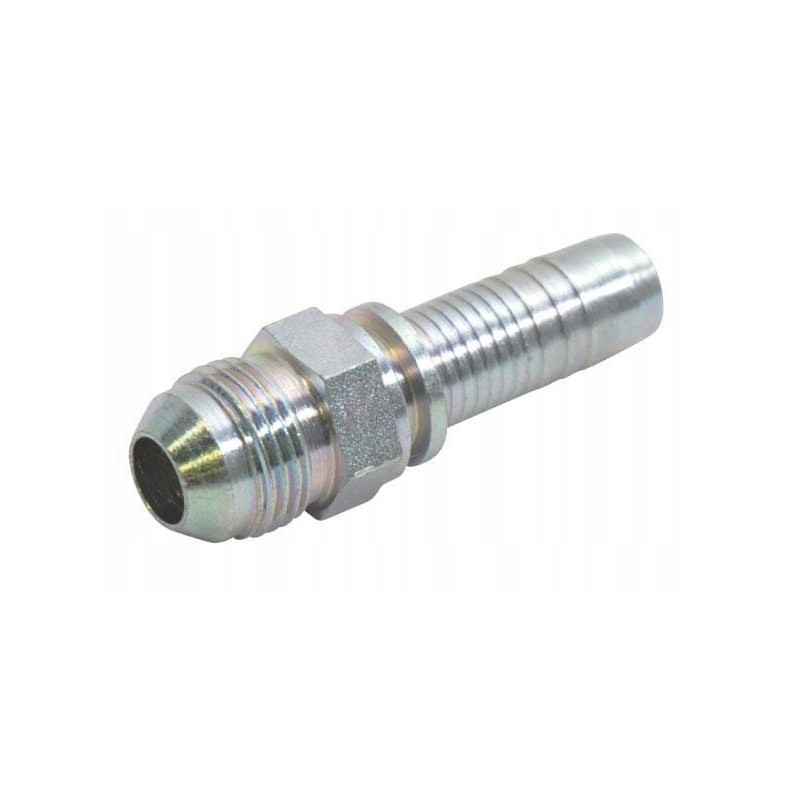

End dn08 9 16 unf

DN08 9/16 UNF fitting Parameters

Part number: PC89

Unit: Piece

Manufacturer: Alfagomma

EAN: 8716106440924

Cone angle: 37 °

Shape: Straight - 2 sides of connection

Connector type no. 1: Thread

Connector type no. 1 - male /female: Male

Connector type no. 1 - code: AGJ

Connector no. 1 length: 24.8 mm

Connector thread diameter: 9/16 inch

Connector Thread Type: UNF

Connector No. 1 Wrench Size: 17.0 mm

Connector No. 2 Type: Hose Adapter

Connector Type No. 2 - Male/Female: Male

Connection No. 2 Diameter: 5/16 inch

Material: Steel

Connection: JIC Male Thread (Thread UNF) with external cone 74°

Type: AGJ

Surface treatment

- Galvanized

- White passivated

Application

Bolted connections on the folded edge of the sheet metal
