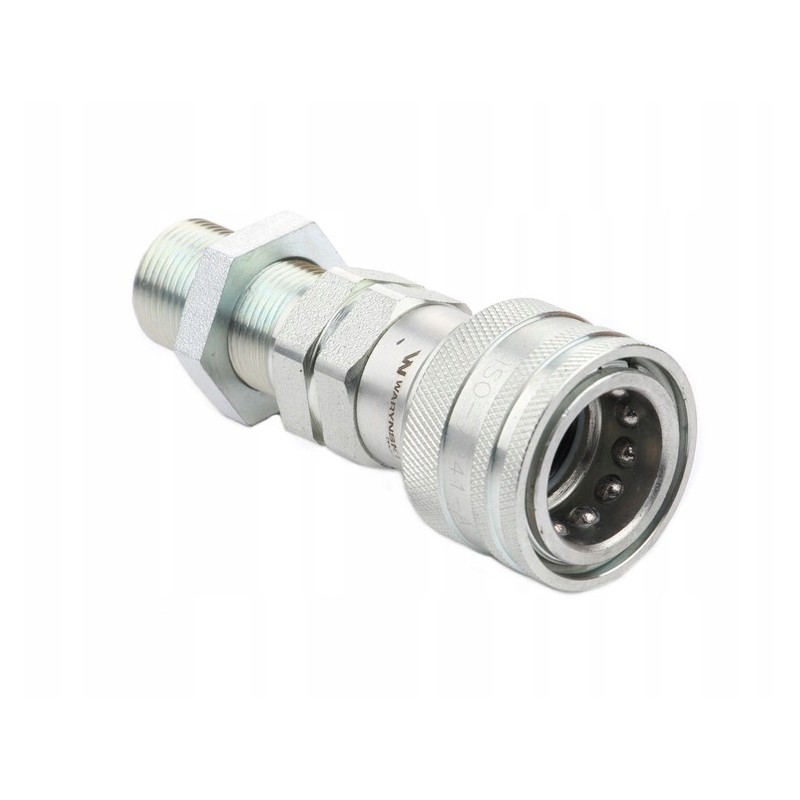

Valve seat M22x1 5 screwed 50490020 Warynski

Valve seat M22x1.5, screwed 50490020 Waryński Valve seat M22x1.5, screwed 50490020 Waryński.

Waryński screwed agricultural quick connector - socket with M22x1.5 external thread. The most popular old-type hydraulic valves with a very wide range of applications in agriculture. They are designed in accordance with dimensional and quality requirements, which specify in detail the operating characteristics and dimensions. Thanks to their strong construction, they are suitable for use in difficult operating conditions of agricultural machinery.

Screwed quick couplings (valves) used in agricultural machines. Due to the design of old-type connectors with a ball socket without seals, it is inevitable that trace amounts of oil will appear at the point of direct contact between the socket and the plug in the disconnected position. This phenomenon will be unnoticeable in the new type ISO 7241-A Waryński ISO 7241-A (EURO) Waryński and ISO 16028 (dry-cut) Waryński connectors. ,WRSM22WT.

Producer: Waryński Original

Product code: 44036745

Thread:: External M22x1.5

Operating temperature: from -25°C to +120°C

Max. operating pressure: 25.0 Mpa / 250 bar

Cone - thread: 15L (15 mm)
