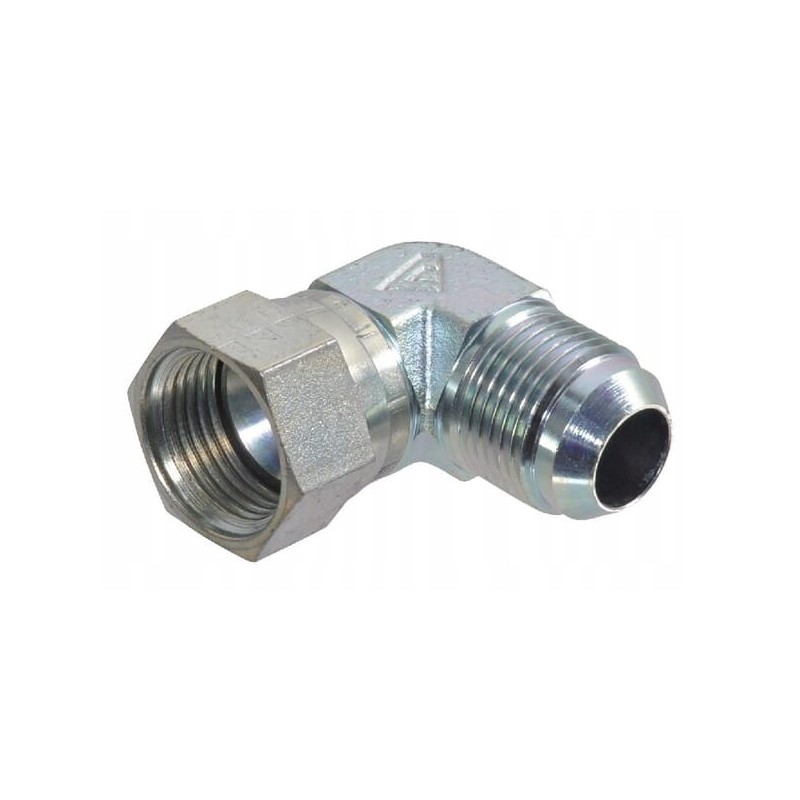

Elbow connector m fm 7 8 jic 90

M/Fm 7/8 JIC 90° elbow connector Parameters

Part number: KOU14

Unit: piece

Manufacturer: Alfagomma

Shape: Elbow - 2 sides connection

Connector type no. 1: Thread

Connector type no. 1 - male/female: Female

Connector no. 1 thread diameter [F1]: 7/ 8 inch

Number of turns per inch of thread of connector No. 1: 14

Thread length of connector No. 1: 40.7 mm

Angle: 90 °

Working pressure max.: 280 BAR

Thread type of connector No. 1: JIC

Type of connector No. 2 : Thread

Connector No. 2 Type - Male/Female: Male

Connector No. 2 Diameter: 7/8 inch

Connector No. 2 Thread Diameter: 7/8 inch

Connector No. 2 Thread Pitch: 14 mm

Connector No. 2 Thread Type: JIC

Pipe diameter: 5/8 inch

Technical information

- For connections with a 37º (74º) cone, screw connections on the sheet edge fold with UNF / JIC thread according to SAE I 514, connection thread on the 37º cone side: UNF according to ANSI

Dimension from the axis of joint no. 2 to the end of the next joint 36.5mm
