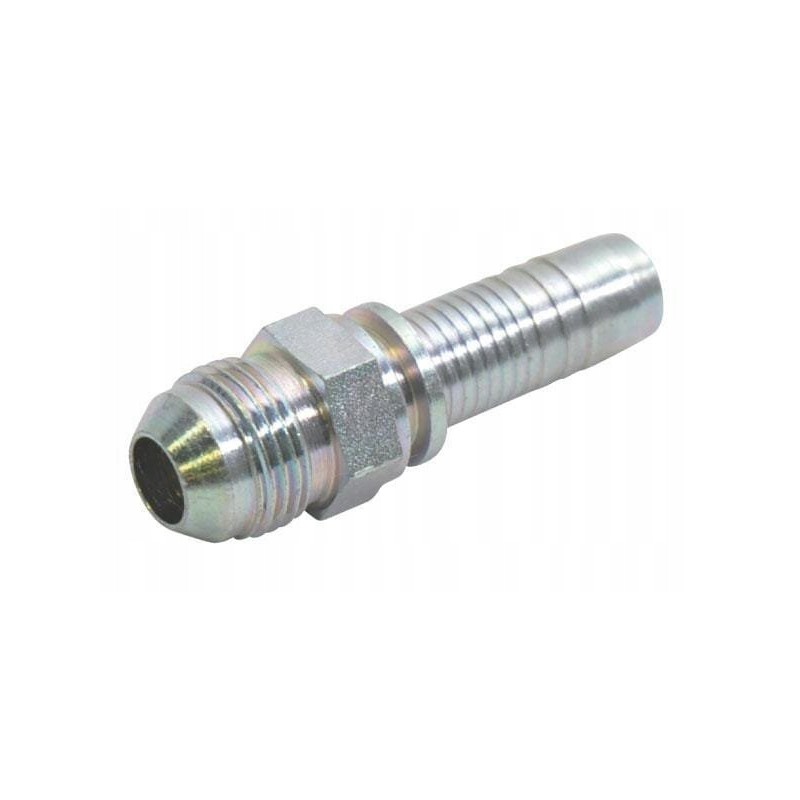

Tip dn08 3 4 unf

DN08-3/4 UNF fitting Parameters

Part number: PC812

Unit: Piece

Manufacturer: Alfagomma

EAN: 8716106786183

Cone angle: 37 °

Shape: Straight - 2 sides connection

Connector type no. 1: Thread

Connector type no. 1 - male/female: Male

Type connector no. 1 - code: AGJ

Length of connector no. 1: 24.8 mm

Connector thread diameter: 3/4 inch

Connector thread type: UNF

Wrench size for connector no. 1: 19.0 mm

Connector type no. 2: Connector on hose

Connection type no. 2 - male/female: Male

Connection diameter no. 2: 5/16 inch

Material: Steel

Connection: JIC male thread (UNF thread) with 74° external cone

Type: AGJ

Surface treatment

- Galvanized

- White passivated

Application

Bolted connections on the folded edge of the sheet metal
