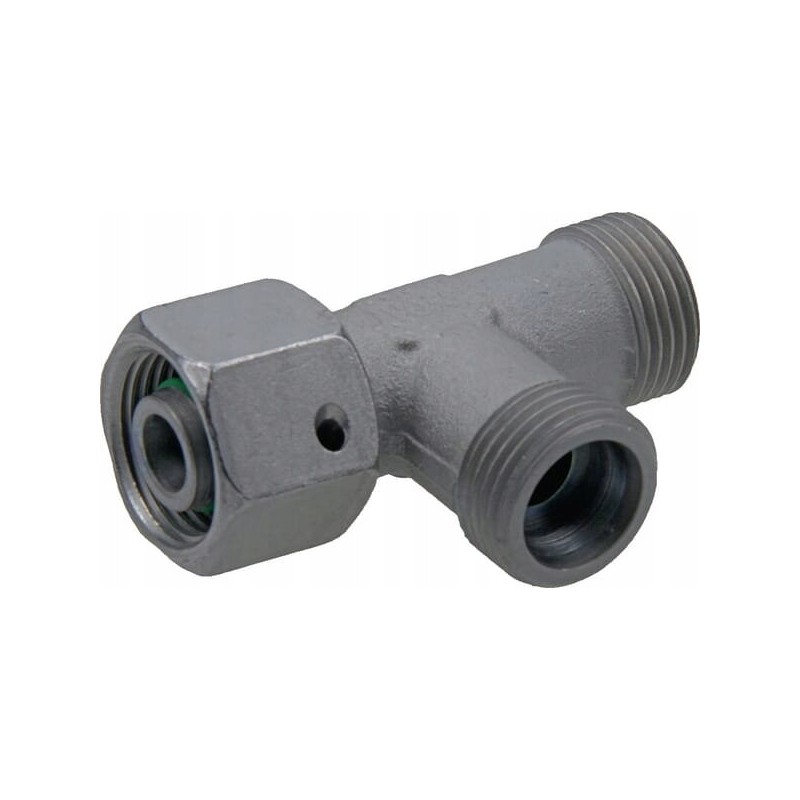

T-connector with symmetrical nut m20x1 5 1

Symmetrical tee connector with nut M20x1.5 12S Parameters

Part number: ELSD12S

Unit: piece

Manufacturer: Voss

Shape: Tee (T) - 3 ports

Connector type: Thread

Connector type - male/female: Male

Connector thread diameter: M20

Connector no. 1 thread pitch: 1 .5 mm

Connector Thread Type: Metric

Wrench Size for Connector [S2]: 24 mm

Connector Type No. 2: Thread

Connector Type No. 2 - Male/Female: Male

Connector No. 2 Thread Diameter: M20

Connector Thread Pitch No.2: 1.5mm

Connector No.2 Thread Type: Metric

Connector No.2 [S2] Wrench Size: 24mm

Connector No.3 Type: Swivel Nut

Connector No.3 Male/Female Type: Female

Connector Length No. 3: 48

Thread diameter of connector No. 3: M20

Thread pitch of connector No. 3: 1.5 mm

Thread type of connector No. 3: Metric

Pipe diameter: 12 mm

Body height [S1]: 17 mm

Working pressure max .: 630 BAR

Internal diameter. sealing ring: 10 mm

Sealing washer thickness: 1.5 mm

Seal material: Nitrile rubber [NBR]

Series: S

Specifications

- Cutting ring 2S

Application

- Hydraulic hose

- Hydraulic lines

Properties

- Optimum connection to the cutting ring and perfect operation - High corrosion resistance Technical information

- Available on request in a stainless steel version - Viton

gasket available on request Dimension from the axis of the joint to the end of the next joint [L2]

38mm

Dimension from the axis of joint no. 2 to the end of the next joint [L1]

31mm

Dimension from the axis of joint no. 3 to the end of the next joint [L]

21.5mm

DIN standard

- 2353

- 3865

- 2401

Internal diameter

- 8.99 mm

- 8 mm

Surface treatment

- Zinc

- Nickel plated
