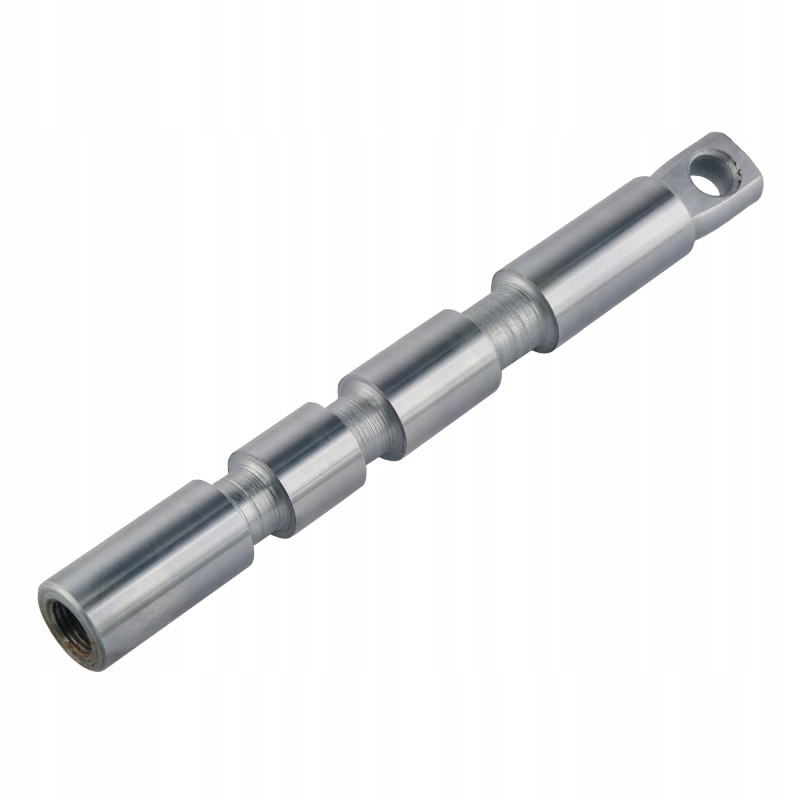

P40 Type C Distributor Slider badestnost

SLIDE OF THE PUMP SECTION, TYPE C1, OF THE BADESTNOST P40 HYDRAULIC DISTRIBUTOR. Production:

Original product of the Badestnost brand, symbol: 1.10.70.250.3

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Various foreign bodies, filings, pieces of wires and others may permanently damage the spool in the distributor, symptoms of which may be the distributor lever sticking or pressure not being maintained in a given section. The slider may prove to be the perfect repair kit for a single section.

The plunger section is specially adapted to control single-acting cylinders. Very useful in TUR front loaders with single-sided cylinders for lifting the main frame. Technical data: Slider mounted inside the cast iron distributor body. To install the slider, you must first unscrew the front and rear caps from a given section. Remove the old slider and reinstall the spring set.

Material: steel

Hydraulic diagram of the C1 Badestnost slider:

Recommended for installation in Badestnost P40 manifolds with a flow of 40L/min:
