Straight hydraulic connection, nipple 3 8 22

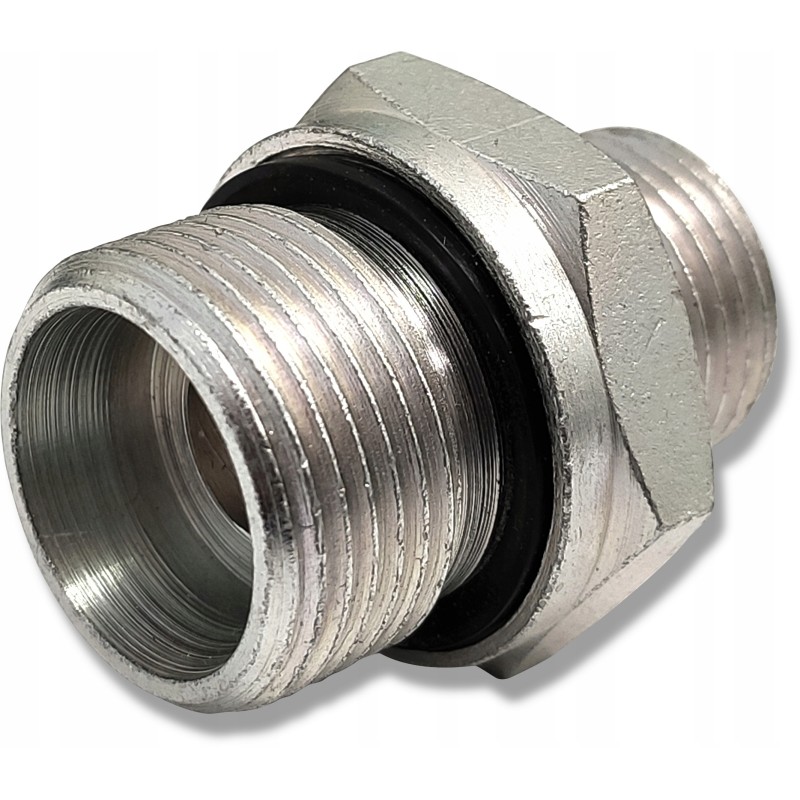

STRAIGHT HYDRAULIC CONNECTION NIPPLE G3/8' M22 SKRAW-MET CODE: [1409] Attention! Illustrative photos! The actual proportions of the offered connection may vary! You will find detailed information about the product in the specifications below! Application:

The hydraulic connection is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction .

The connection is designed to be screwed into the body of, among others: pump, distributor, etc.

It is used to connect the main components in the hydraulic system with hydraulic lines.

On the side there is an ED seal on the connection side, which fully seals the system.

The other side is responsible for connecting the hydraulic conduit or elbow. Sealing occurs after tightening the joints on the self-sealing cone. This ensures complete sealing of the system.

The connection is designed to be screwed into the body. It should not be used to connect two hydraulic lines. For this purpose, connectors available at other auctions are used.

Technical data:

Clamping cone angle: 24° (typical for the Polish standard)

Total length H: 32 .5mm

Nominal diameter of the passage: 12mm

G1 thread on the body side (thread with seal): external inch 3/8

M2 thread on the cable side: external metric 22x1.5

Connection version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Fluid type: hydraulic oil

Material:

weldable steel, galvanized, corrosion-resistant
