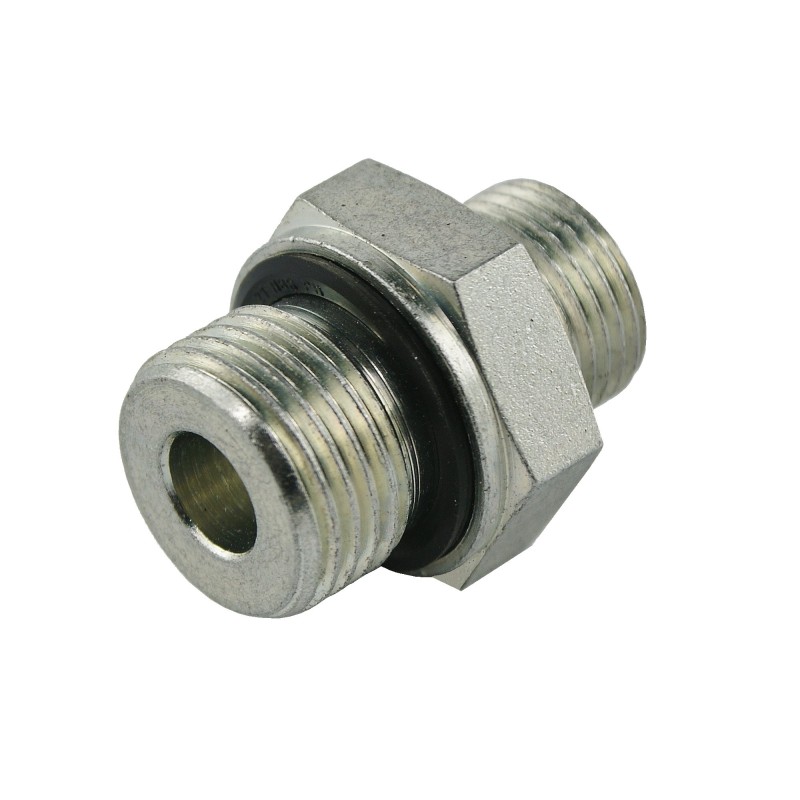

Straight connection ed bb m36x1 5 m33x2 hydrolider

STRAIGHT HYDRAULIC CONNECTION BB 36 - 33 Production:

Original product of the Hydrolider brand, symbol: 1.60.34.018

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Connection with rubber seal, screwed into body, e.g. of a pump, cylinder, distributor, etc. Connects the main components of the hydraulic system with hydraulic conduits.

The side intended for screwing into the body has an ED seal, no additional seals are required in this place.

The other side is intended for screwing in the conduit, elbow or another connector. Sealing occurs when screwing onto the self-sealing clamping cone. The use of additional seals is also not required here.

The connection is intended only for screwing into the body. Not suitable for connecting two wires. This is done using connectors that can be purchased at our other auctions.

Helpful data:

Thread diameter M36x1.5 measured with a caliper:

Outer diameter [mm]: 35.6 - 35.9

Inner diameter [mm]: 33.4 - 33.8

M33x2 thread diameter measured with a caliper:

Outer diameter [mm]: 32.6 - 32.9

Inner diameter [mm]: 30.5 - 30.9

Technical data:

Clamping cone angle: 24° (typical for the Polish standard)

Nominal diameter of the passage: 25 mm

Thread on the body side: external metric 36x1.5

Thread on the cable side: external metric 33x2

Connection version: light

Nominal pressure: 180 bar

Maximum pressure: 230 bar

Liquid type : hydraulic oil

Material:

Weldable steel, galvanized, corrosion-resistant
