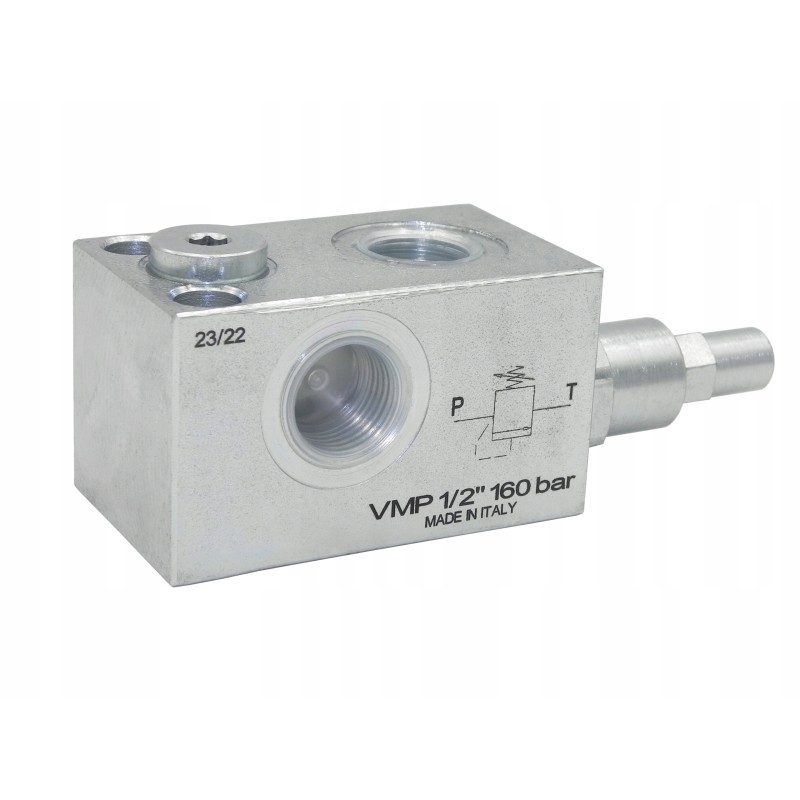

Pressure relief valve vmp 1 2 70l 50 250bar

VMP 1/2' HYDRAULIC OVERFLOW VALVE WITH PRESSURE REGULATION 50-250 bar Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Principle of operation:

The overflow (safety) valve is used to stabilize and limit maximum pressure in the entire hydraulic system or a specific part of it. It performs a typical safety function during unpredictable overload of the hydraulic system. The valve is adjusted using a knob, and the settings can be secured using a lock nut. Connection: Connect both P ports to the hydraulic line where the pressure is to be controlled. Connect the T to the return line (overflow) to the oil tank. It has an additional port for connecting a pressure gauge.

Technical data:

Maximum flow: 70 l/min

Number of hydraulic holes in the body: 3 (+ outlet for a pressure gauge) Internal threads in the body: 1/2'' [BSP]

Pressure gauge port thread : 1/4' [BSP]

Body material: galvanized steel

Permissible maximum pressure: 300bar

Factory setting of the overflow valve: 160bar

Weight: 1.058 kg

Temperature range and oil type:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Oil type: Hydraulic oil based on mineral oil
