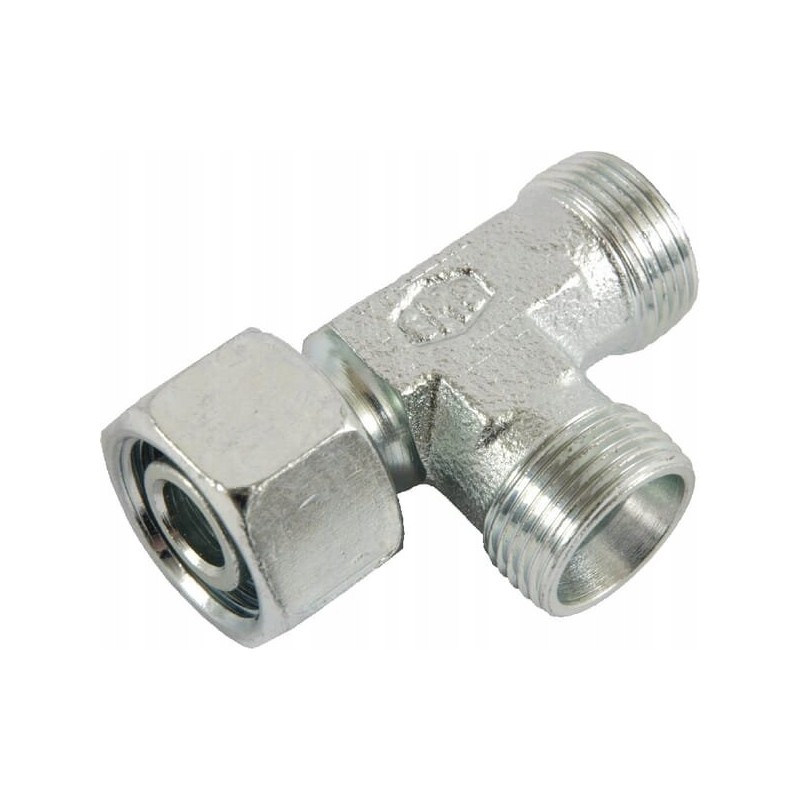

Tee connector with asymmetric nut M12x1

Asymmetric tee connector with nut M12x1.5 6L Parameters

Part number: ELSD6L

Unit: piece

Manufacturer: Voss

Shape: Tee (T) - 3 ports

Connector type: Thread

Connector type - male/female: Male

Connector thread diameter: M12

Connector no. 1 thread pitch: 1 .5 mm

Connector Thread Type: Metric

Wrench Size for Connector [S2]: 14 mm

Connector Type No. 2: Thread

Connector No. 2 Type - Male/Female: Male

Connector No. 2 Thread Diameter: M12

Connector Thread Pitch No.2: 1.5mm

Connector No.2 Thread Type: Metric

Connector No.2 [S2] Wrench Size: 14mm

Connector No.3 Type: Swivel Nut

Connector No.3 Male/Female Type: Female

Connector Length No. 3: 34.5

Connector No. 3 thread diameter: M12

Connector No. 3 thread pitch: 1.5 mm

Connector No. 3 thread type: Metric

Pipe diameter: 6 mm

Body height [S1]: 12 mm

Pressure working max.: 500 BAR

Internal diameter. sealing ring: 4.5 mm

Sealing washer thickness: 1.5 mm

Seal material: Nitrile rubber [NBR]

Series: L

Specifications

- Cutting ring 2S

Application

- Hydraulic hose

- Hydraulic lines

Properties

- Optimum connection to the cutting ring and perfect operation - High corrosion resistance Technical information

- Available on request in a stainless steel version - Viton

gasket available on request Dimension from the axis of the joint to the end of the next joint [L2]

27mm

Dimension from the axis of joint no. 2 to the end of the next joint [L1]

26mm

Dimension from the axis of joint no. 3 to the end of the next joint [L]

12mm

DIN standard

- 2353

- 3865

- 2401

Internal diameter

- 4.33 mm

- 2.5 mm

Surface treatment

- Zinc

- Nickel plated
