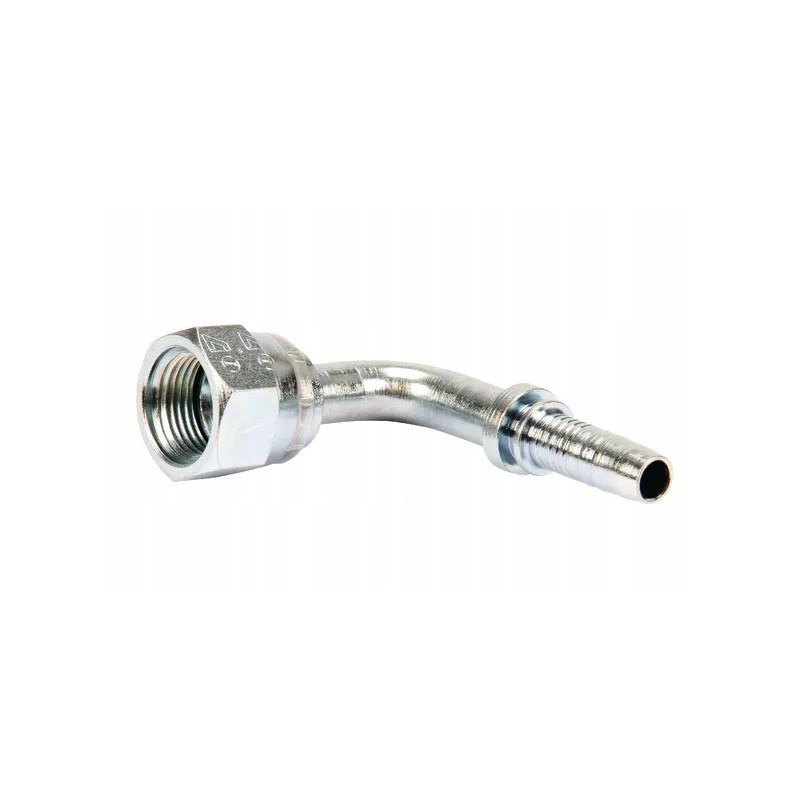

Pa6790 tip dn06 7 16 unf 90

PA6790 End cap DN06-7/16-UNF-90°EAN

8716106788477

Product details

Cone seal - metal on metal

Socket end

Cone angle

37 °

Shape

Elbow - 2 sides of connection

Connector type No. 1

Thread

Connector type no. 1 - male/female

Female

Connector type no. 1 - code

DKJ

Connector No. 1 length

34.2 mm

Connector thread diameter

7/16 inch

Connector Thread Type

UNF

Wrench Size for Connector No. 1

16.0 mm

Connector No. 2 Type

Hose connector

Connector type no. 2 - male/female

Male

Connection no. 2 diameter

1 /4 inch

Connection no. 2 diameter

6 mm

Connection no. 2 length

32 mm

Angle

90 °

Material

Steel

Surface treatment

Zinc

White passivated

OE reference number

H1222591-04040M

Connection

JIC union nut (UNF thread) with 74° internal cone

Application

Screw connections on the folded edge of the sheet metal

Type

DKJ
