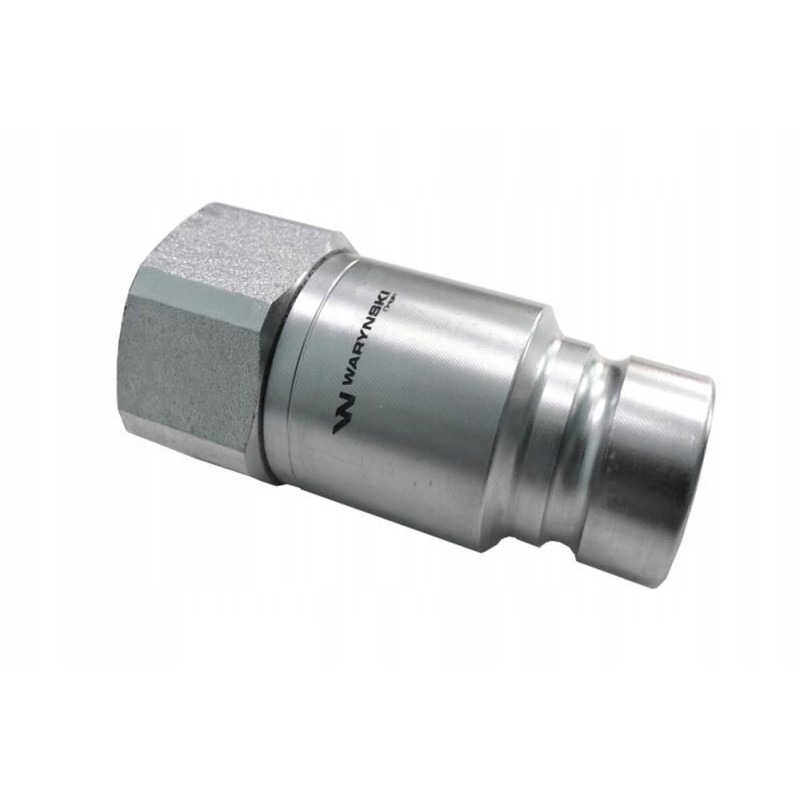

HYDRAULIC DRY-CUT QUICK COUPLING PLUG G1/4'BSP FEMALE THREAD ISO16028 WARYŃSKIHigh-quality dry-cut hydraulic quick coupling Waryński - ISO-16028 plug.
Quick connectors are designed in accordance with the dimensional and quality requirements of the standard ISO 16028 F Series, which specifies in detail the characteristics and dimensions to enable
compatibility of quick connectors produced by different manufacturers in accordance with this
standard. Interchangeable with ISO-F quick connectors from other manufacturers such as: Parker,
Faster, Stucchi, DNP, Tema and others.
Specification:
Operating temperature: from -25°C to +120°C
Thread: Internal 1/4'
Max working pressure: 35.0 Mpa / 350 bar Standard: ISO-16028 (ISO-F)
Fits sockets: WIFR14MW, WIAM16SZ, WIAM18SZ,
Cone - thread: BSP
Type: Plugin
No. catalog: WIFR14SW
Application:
Quick connectors used in agricultural, forestry, industrial and construction machines.
Waryński quick connectors solve the problem of quickly connecting and disconnecting flexible cables. The spring mechanism makes it easy to connect the plug to the socket, often with one hand.
Producer: Waryński
WIFR14SW
