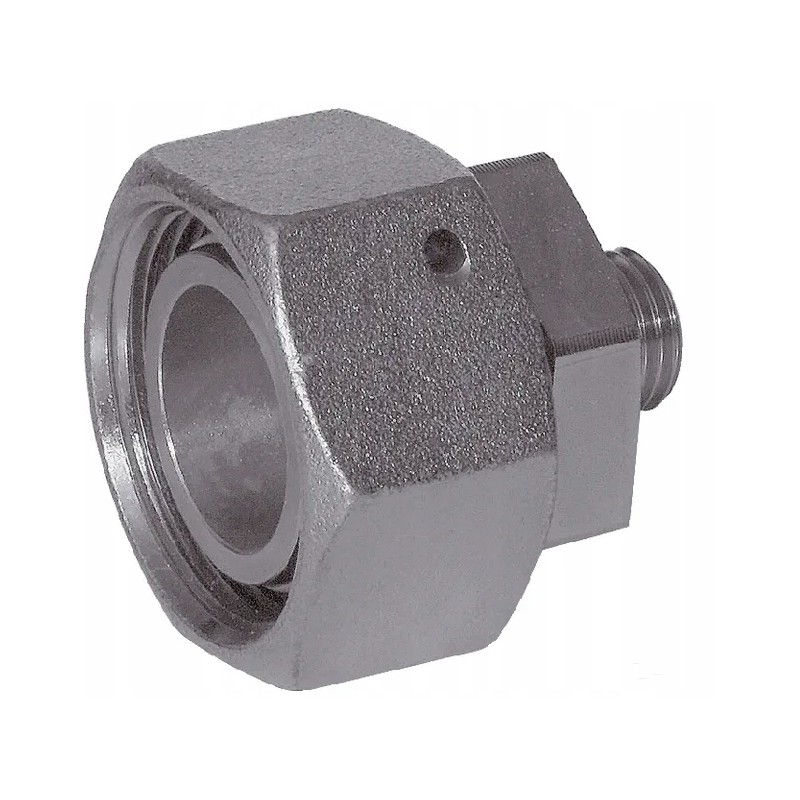

Straight connector with nut m18x1 5 12l m16x1 5 10l

REDSD1210L Straight connector with nut M18x1.5 12L - M16X1.5 10LK shape

Straight - 2 sides of the connection

Connector type no. 1

Thread

Type of connector no. 1 - male/female

Male

Connection diameter

10 mm

D2 Thread diameter of connector no. 1< p>

M16

Connector No. 1 thread pitch

1.50 mm

Connector thread type

Metric

SW1 Wrench size for connector no. 1

22.0 mm

Connector type no. 2

Thread

Connector type no. 2 - male/female

Female

Connection no. 2 diameter

12 mm

D1 Connection no. 2 thread diameter

M18

Connection no. 2 thread pitch

1.50 mm

Connection no. 2 thread type

Metric

SW3 Wrench size for connector no. 2

22.0 mm

Pipe diameter

12 mm

10 mm

DIN standard

2401

Inner diameter

8 mm

L1 Length

26 mm

L2 Total length

40.5 mm

Max working pressure

400 BAR

Sealing washer thickness

1.5 mm

Seal material

Nitrile rubber [NBR]

Series

L
