Quick connector plug m18x1 5 male thread 9100818w

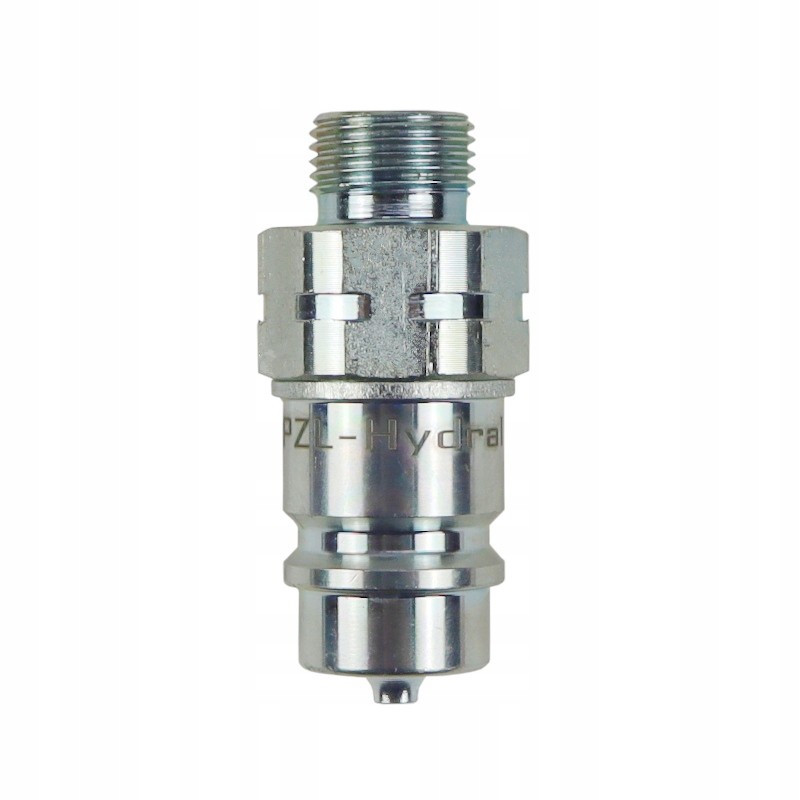

Hydraulic quick connector plug M18x1.5 external thread EURO (9100818W) (ISO 7241-A) HYDRAL PREMIUM

Hydral

Hydraulic connector plug long M18x1.5 HYDRAL PREMIUM Hydral Premium quick connectors differ from others on the market in that they are disassembled and repairable.

Technical data:

* Thread: M18x1.5 external

* Valve type: IP with poppet valve

* Standard: ISO 7241-1 series 'A'

* Pressure: up to 350 bar

* Material: galvanized carbon steel

* Operating temperature: NBR -20°C/+100°C

* Flow: up to 200 l/min

* Connection system: Push-Pull

* Residual pressure - connection: impossible, disconnection: impossible

* Seal: NBR, VITON

Application:

* Universal use in hydraulics

Catalog number:

- HP102L1218PH

Alternative names:

* Quick connector

* Male connector

HYDRAL QUICK CONNECTORS

The highest-class HYDRAL hydraulic quick couplers are connectors in the Euro ISO 7241 Series A standard. We present quick connectors that meet the high requirements of customers from many industries. The use of HYDRAL solutions enables easy, safe and durable, and above all, instantaneous connection of several hydraulic lines of different sizes and applications at the same time.​

By using HYDRAL quick connectors, you ensure proper flow of the working fluid and a guarantee of a safe connection.

HYDRAL connectors - tailored to your needs.
