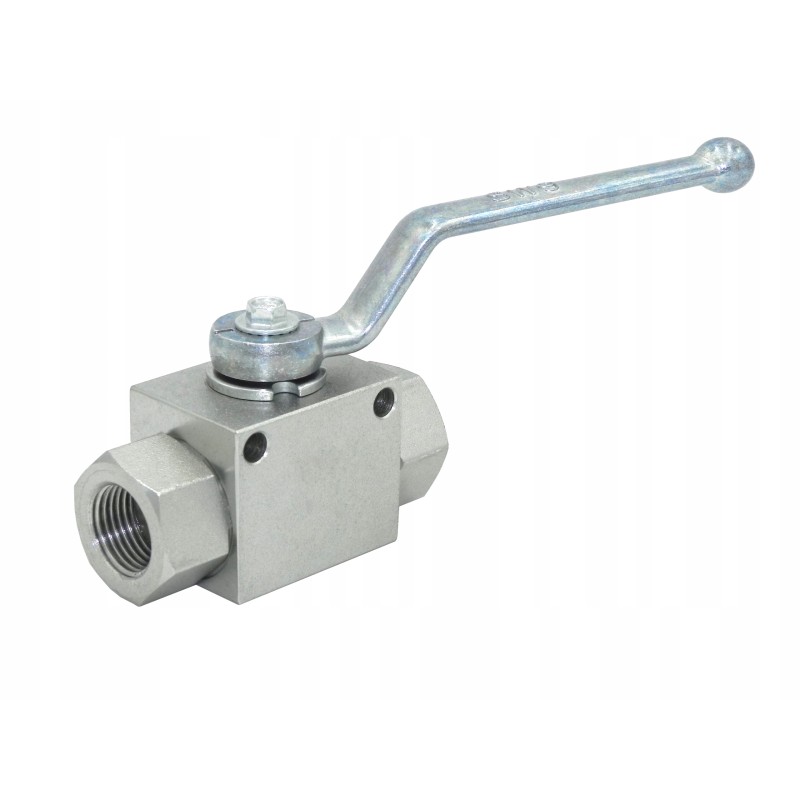

Hydraulic manual ball valve, 2-way 3 8

2-WAY HYDRAULIC BALL VALVE, 3/8' INTERNAL THREAD. Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Connection:

Connect A and P to the power line where there is a need to open and closing the flow.

Principle of operation:

The 'close/open' valve is used to block the oil flow on a single hydraulic line. The valve can be closed and opened even at high pressure.

Technical data:

Number of hydraulic holes in the body: 2

Internal threads in the body: [BSP] 3/8'

Body material: galvanized steel

Maximum allowable pressure: 500 bar

Weight : 0.50 kg

Temperature range and oil type:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Oil type: Hydraulic oil based on mineral oil

Included in the offer We have most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
