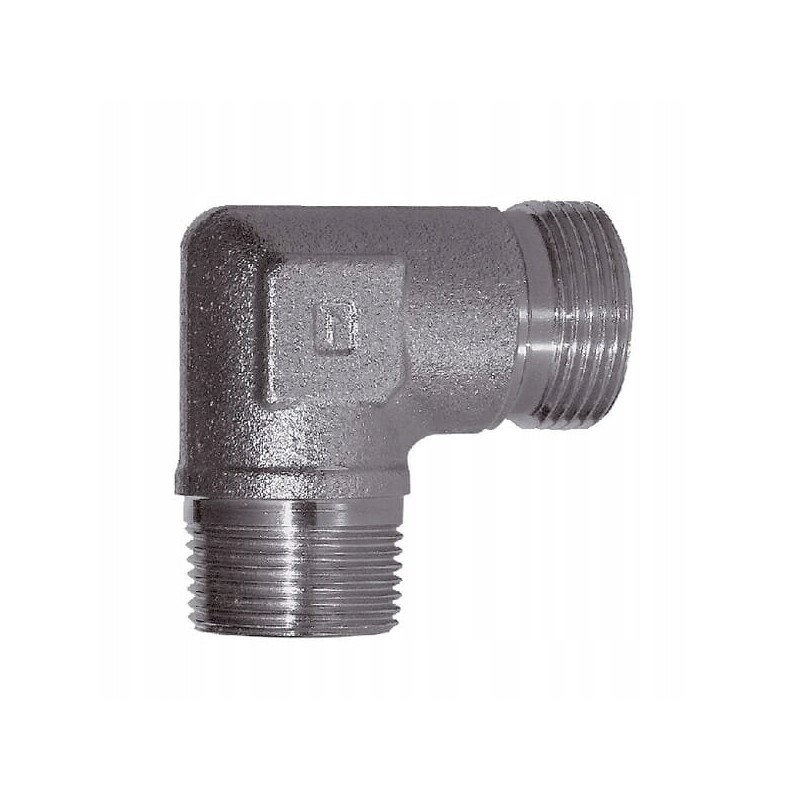

Angled threaded fitting

Angle Threaded Fitting Parameters

Part Number: WES12SM18

Unit: Piece

Manufacturer: Voss

Shape: Elbow - 2 Sides Connection

Connector Type No. 1 - Male/Female: Female

Connection Diameter: 12 mm

Connector No. 1 Thread Diameter: M20

Connector Thread Length: 12 mm

Connector No. 1 Thread Pitch: 1.50 mm

Connector Thread Type: Metric

Connector No. 1 Wrench Size: 24.0 mm

Connector No. 2 Male/Female Type: Male

Connector No. 2 Thread Diameter: M18

Connector Thread Pitch No. 2: 1.50 mm

Connection No. 2 thread type: Metric

Wrench size for connector No. 2: 22.0 mm

Pipe diameter: 12 mm

ISO standard: 228

Internal diameter: 8 mm

Body height: 22 mm

Angle: 90 °

Max working pressure: 630 BAR

Series: S

Advantages

- Limited risk of leakage Product details

- For direct connection to a metric hose nut or pre-assembled connector - Highly resistant to corrosion - Hydraulic Hoses

- Hydraulic pipes

Benefits

- Low risk of leakage Dimension from the axis of the joint to the end of the next joint 20mm

Dimension from the axis of joint no. 2 to the end of the next joint 21.5mm

DIN standard

- 2353

- 228

- 3852

- 2401

Surface treatment

- Zinc

- Nickel plated
