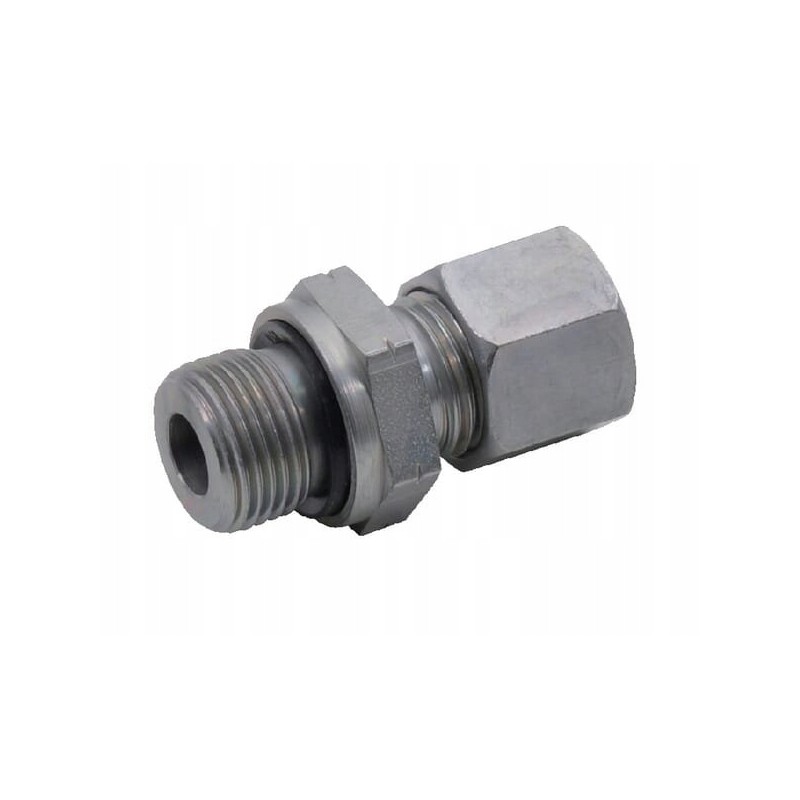

Straight screw-in connector gev18lr12wd voss

Straight screw-in connector Parameters

Part number: GEV18LR12WD

Unit: piece

Manufacturer: Voss

Shape: Straight – 2 sides of the connection

Connector type: Cutting ring

Connector type - male/female: Male

Connection diameter: 18 mm

Connector thread diameter: M26

Connector thread length [K]: 14 mm

Connector No. 1 thread pitch: 1.5 mm

Connector thread type: BSP

Connector [S1] wrench size: 27 mm

Connector No. 2 type: Sealing ring

Connector No. 2 type - male/female: Male

Connector No. 2 thread diameter: 1/2 inch

Turns per inch of connector No. 2 thread: 14

Connector No. 2 thread type: BSP

Size wrench for connector no. 2 [S2]: 32 mm

Pipe diameter: 18 mm

ISO standard: 228

Max working pressure: 400 BAR

Seal material: Nitrile rubber [NBR]

Series: L

Specifications

- Cutting ring 2S

Application

- Hydraulic hose

- Hydraulic lines

Features

- Optimal connection to the cutting ring and perfect function

- High corrosion resistance

Technical information

- Stainless steel version available on request

- Viton gasket available on request

Dimension from the axis of the joint to the end of the next joint [L2]

31 mm

Dimension from the axis of joint no. 2 to the end of the next joint [L1]

14, 5 mm

DIN standard

- 2353

- 228

- 3852

- 2401

Surface treatment

- Zinc

- Nickel-plated
