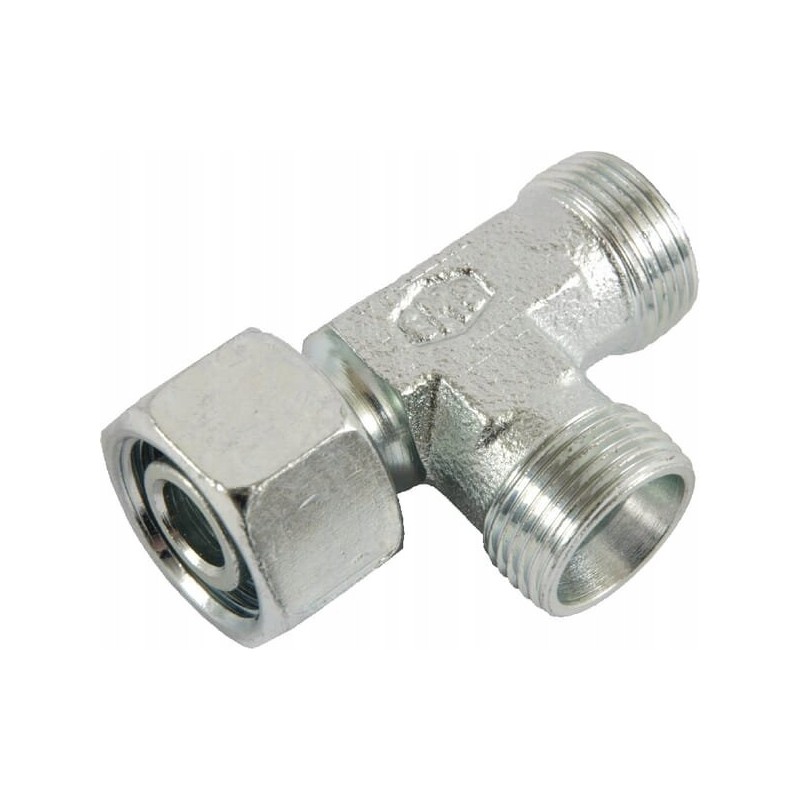

Tee connector with asymmetrical nut M30x2

Asymmetric tee connector with nut M30x2 20S Parameters

Part number: ELSD20S

Unit: piece

Manufacturer: Voss

EAN: 8716106982721

Shape: Tee (T) - 3 ports

Connector type: Thread

Connector type - male/female: Male

Connector thread diameter: M30

Connector thread pitch No. 1: 2 mm

Connector Thread Type: Metric

Wrench Size for Connector [S2]: 36 mm

Connector No. 2 Type: Thread

Connector No. 2 Type - Male/Female: Male

Connector No. 2 Thread Diameter: M30

Pitch Connector No. 2 Thread Type: 2 mm

Connector No. 2 Thread Type: Metric

Connector No. 2 Wrench Size [S2]: 36 mm

Connector No. 3 Type: Swivel Nut

Connector No. 3 Male/Female Type: Female

Connector Length No. 3: 65

Thread diameter of connector No. 3: M30

Thread pitch of connector No. 3: 2 mm

Thread type of connector No. 3: Metric

Pipe diameter: 20 mm

Body height [S1]: 27 mm

Working pressure max.: 420 BAR

Internal diameter. sealing ring: 17.3 mm

Sealing washer thickness: 2.4 mm

Seal material: Nitrile rubber [NBR]

Series: S

Specifications

- Cutting ring 2S

Application

- Hydraulic hose

- Hydraulic lines

Properties

- Optimum connection to the cutting ring and perfect operation - High corrosion resistance Technical information

- Available on request in a stainless steel version - Viton

gasket available on request Dimension from the axis of the joint to the end of the next joint [L2]

48mm

Dimension from the axis of joint no. 2 to the end of the next joint [L1]

44.5mm

Dimension from the axis of joint no. 3 to the end of the next joint [L]

26.5mm

DIN standard

- 2353

- 3865

- 2401

Internal diameter

- 16.11 mm

- 14 mm

Surface treatment

- Zinc

- Nickel plated
