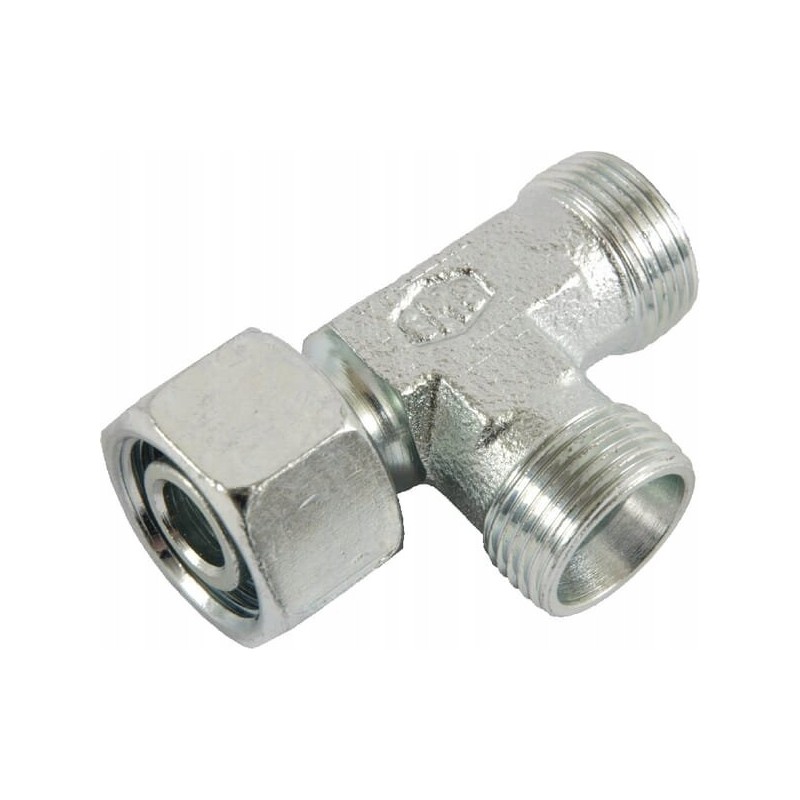

Tee connector with asymmetrical nut M16x1

Asymmetric tee connector with nut M16x1.5 10L Parameters

Part number: ELSD10L

Unit: piece

Manufacturer: Voss

EAN: 8719607024921

Shape: Tee (T) - 3 ports

Connector type: Thread

Connector type - male/female: Male

Connector thread diameter: M16

Connector thread pitch No. 1: 1.5 mm

Connector Thread Type: Metric

Wrench Size for Connector [S2]: 19 mm

Connector No. 2 Type: Thread

Connector No. 2 Male/Female Type: Male

Connector No. 2 Thread Diameter: M16

Connector No. 2 Thread Pitch: 1.5mm

Connector No. 2 Thread Type: Metric

Connector No. 2 Wrench Size [S2]: 19mm

Connector No. 3 Type: Swivel Nut

Connector No. 3 Type - Male/Female: Female

Connector No. 3 Length: 40

Connector No. 3 Thread Diameter: M16

Connector No. 3 Thread Pitch: 1.5 mm

Connector No. 3 Thread Type: Metric

Pipe Diameter: 10 mm

Body Height [S1]: 17 mm

Max working pressure: 500 BAR

Internal diameter. sealing ring: 8.5 mm

Sealing washer thickness: 1.5 mm

Seal material: Nitrile rubber [NBR]

Series: L

Specifications

- Cutting ring 2S

Application

- Hydraulic hose

- Hydraulic lines

Properties

- Optimum connection to the cutting ring and perfect operation - High corrosion resistance Technical information

- Available on request in a stainless steel version - Viton

gasket available on request Dimension from the axis of the joint to the end of the next joint [L2]

30mm

Dimension from the axis of joint no. 2 to the end of the next joint [L1]

29mm

Dimension from the axis of joint no. 3 to the end of the next joint [L]

15mm

DIN standard

- 2353

- 3865

- 2401

Internal diameter

- 8.33 mm

- 6 mm

Surface treatment

- Zinc

- Nickel plated
