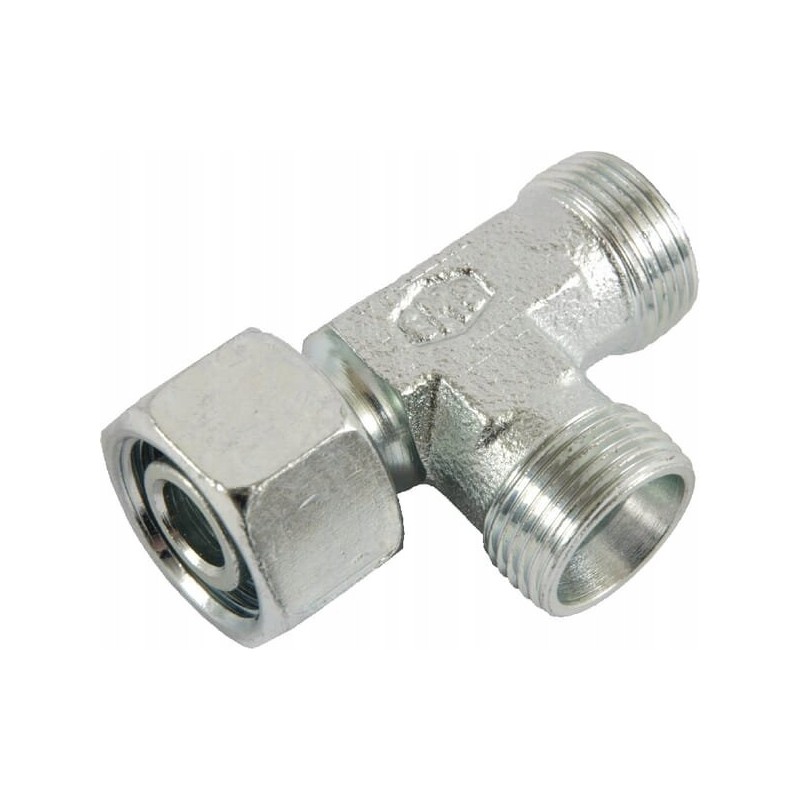

Tee connector with asymmetric nut M18x1

Asymmetric tee connector with nut M18x1.5 12L Parameters

Part number: ELSD12L

Unit: piece

Manufacturer: Voss

EAN: 8716106786497

Shape: Tee (T) - 3 ports

Connector type: Thread

Connector type - male/female: Male

Connector thread diameter: M18

Connector thread pitch No. 1: 1.5 mm

Connector Thread Type: Metric

Wrench Size for Connector [S2]: 22 mm

Connector No. 2 Type: Thread

Connector No. 2 Male/Female Type: Male

Connector No. 2 Thread Diameter: M18

Connector No. 2 Thread Pitch: 1.5mm

Connector No. 2 Thread Type: Metric

Connector No. 2 Wrench Size [S2]: 22mm

Connector No. 3 Type: Swivel Nut

Connector No. 3 Type - Male/Female: Female

Connector No. 3 Length: 42

Connector No. 3 Thread Diameter: M18

Connector No. 3 Thread Pitch: 1.5 mm

Connector No. 3 Thread Type: Metric

Pipe Diameter: 12 mm

Body Height [S1]: 19 mm

Max working pressure: 400 BAR

Internal diameter. sealing ring: 10 mm

Sealing washer thickness: 1.5 mm

Seal material: Nitrile rubber [NBR]

Series: L

Specifications

- Cutting ring 2S

Application

- Hydraulic hose

- Hydraulic lines

Properties

- Optimum connection to the cutting ring and perfect operation - High corrosion resistance Technical information

- Available on request in a stainless steel version - Viton

gasket available on request Dimension from the axis of the joint to the end of the next joint [L2]

32mm

Dimension from the axis of joint no. 2 to the end of the next joint [L1]

29.5mm

Dimension from the axis of joint no. 3 to the end of the next joint [L]

17mm

DIN standard

- 2353

- 3865

- 2401

Internal diameter

- 10.44 mm

- 8 mm

Surface treatment

- Zinc

- Nickel plated
