Quick connector cnv plug 1 2 male thread

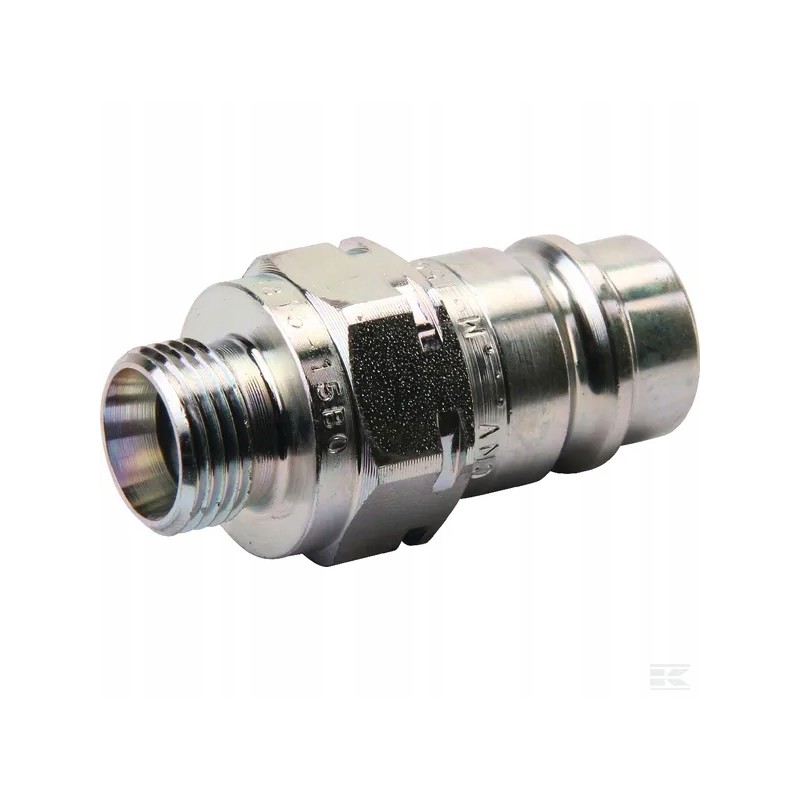

Quick connector plug CNV 1/2' external thread M18x1.5 12L Application:

Part number: CNV0821815M

Unit: Piece

Application:

Universal use

Agricultural machinery

Mineral oil-based fluids

Properties:

Induction hardening in places subject to rapid wear

Fits CPV Faster sockets

Technical information: Connection is made by pressing the plug (one-handed operation)

Shape: Straight - 2 sides of the connection

Size: 1/2 inch

Size: 12.5 mm

Connector type no. 1: Quick connector

Connector No. 1 Type - Male/Female: Male

Connector No. 1 Diameter: 0.81 inch

Connector Diameter: 20.5 mm

Connector No. 1 Thread Diameter: 18 mm

Connector No. 1 Thread Pitch: 1.50 mm

Connector Thread Type : Metric

Connector #1 Thread Type - Code: 02

Connector #1 Key Size: 1.06 inch

HEX.1 Connector #1 Key Size: 27 mm

Connector #2 Type: Thread

Connector #2 Type - Male/Female : Male

HConnection No. 2 diameter: 12 mm

EConnection No. 2 thread diameter: M18

Connection No. 2 thread pitch: 1.50 mm

Connection No. 2 thread type: Metric

Possibility of connection under pressure: Yes

ISO standard:

7241-A

8434-1-L,

Flow at 2 bar pressure: 75 l/min

D1Outside diameter: 1.18 inch

D1Outside diameter: 30 mm

L1Total length, 2.24 inch

L1Total length: 57mm

Material : Carbon steel

Surface treatment: White passivated

Working pressure: 250 BAR:

Working temperature max.: 125 °C

Working temperature min.: -25 °C

Quick connector lock type: Balls around the circumference

Connection method: Press, to connect

Disconnection method: Pull to disconnect

Seal material:

Nitrile rubber [NBR]

Teflon (PTFE)

Series: CNV

Valve type: Poppet:

Weight: 100.2 g
