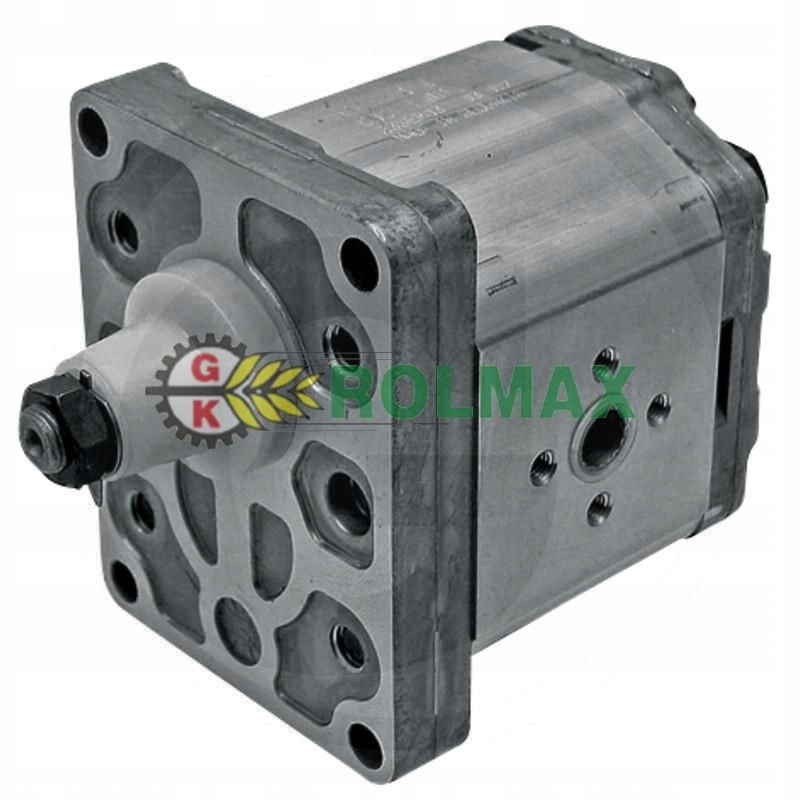

Single pump 3539857m91 casappa

Single pump 3539857M91 Casappa

Part number PLP2011D082E2 Unit piece Specifications

Various connection options

Outer housing with bearings

Benefits

Wide range of applications

Can be used in harsh environmental conditions

Application

Mobile applications

Industrial applications

Properties

Consists of 3 parts

Electro-hydraulic fan drive

Possibility of customization

Shaft type Conical shaft 1:8 Flange type - European standard Flange type - code E2 Number of mounting holes 4 Shaft type Threaded Shaft cone size - code 1:8 Seal type Standard Preferred direction of rotation Clockwise Position Side connections Housing material Aluminum Front and rear cover material Steel Capacity 11.23 cm³/rev Continuous working pressure max. 250 BAR Temporary working pressure max. 280 BAR Peak working pressure max. 300 BAR Rotational speed max. 3500 rpm Housing length 102.5 mm BSpacing from the connection to the flange 48.5 mm EDiameter of the screw spacing of the pressure connection 30 mm DDiameter of the screw spacing of the section connection 30 mm Installation diameter 36.5 mm

Comparison numbers: 3539857M91, 1825212M91

Manufacturer: Casappa
