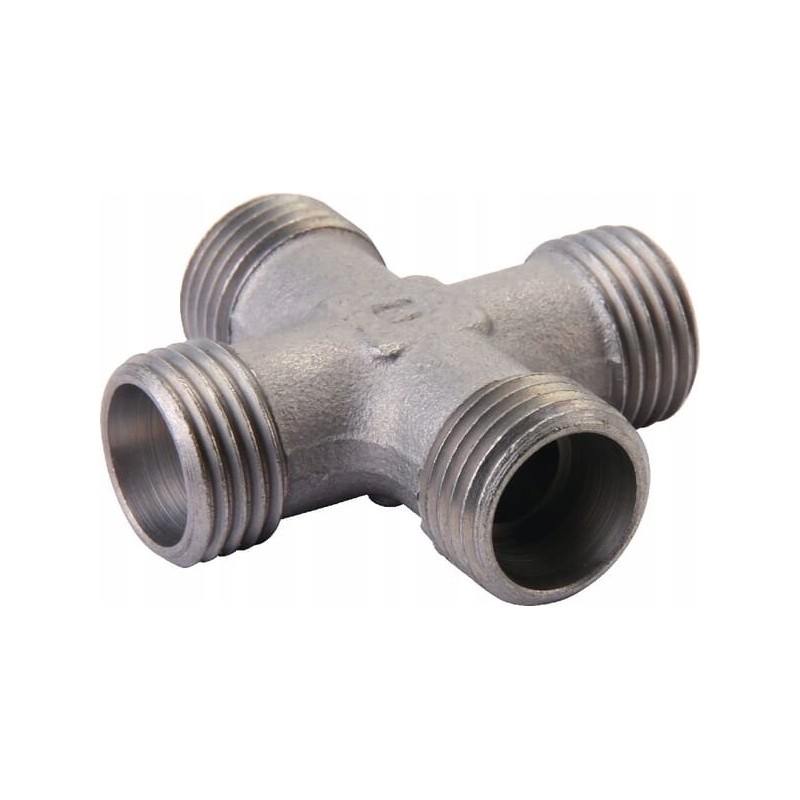

Cross connector M22x1.5 15L Parameters

Part number: KS15L

Unit: piece

Manufacturer: Voss

Properties: - High corrosion resistance

Shape: Cross - 4 connection sides

Connector type: Cutting ring

Connector type - male/female: Female

Connection diameter: 15 mm

Connector Thread Diameter: M22

Connector No. 1 Thread Pitch: 1.5 mm

Connector Thread Type: Metric

Wrench Size for Connector [S1]: 27 mm

Connector No. 2 Type: Cutting Ring

Connector No. 2 Type - Male/Female : Female

Connector No. 2 Thread Diameter: 15 mm

Connector No. 2 Thread Diameter: M22

Connector No. 2 Thread Pitch: 1.5 mm

Connector No. 2 Thread Type: Metric

Wrench Size for Connector No. 2 [S2]: 27 mm

Connector No.3 Type: Cutting Ring

Connector No.3 Type - Male/Female: Female

Connection No.3 Diameter: 15mm

Connector No.3 Thread Diameter: M22

Connector No.3 Thread Pitch: 1.5mm

Connector Thread Type No. 3: Metric

Connector Type No. 4: Cutting Ring

Connector Type No. 4 - Male/Female: Female

Connection No. 4 Diameter: 15 mm

Connector No. 4 Thread Diameter: M22

Connector No. 4 Thread Pitch: 1.5 mm

Thread type of connector no. 4: Metric

Pipe diameter: 15 mm

Inner diameter: 15 mm

Body height: 19 mm

Max working pressure: 315 BAR

Series: L

Surface treatment: Zinc / Nickel

Specifications

- For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Available on request in a stainless steel version Dimension from the axis of the joint to the end of the next joint [L2]

- 21 mm

- 56 mm

DIN standard

- 2353

- 2401

Surface treatment

- Zinc

- Nickel plated
