Hydraulic set, front two-way valve

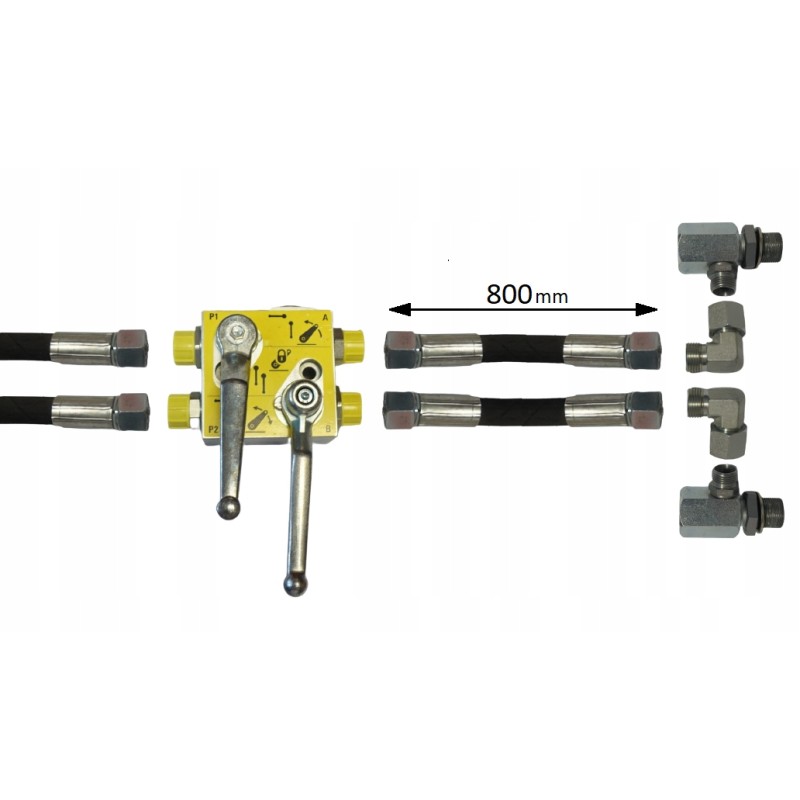

Hydraulic connection set using a two-way hydraulic valve: - two-way valve for the front linkage

- rear output tee

- 2x metric elbow

- 2x 800mm straight pipe

The switching valve, usually mounted behind the cab, allows you to select the operating mode of the front linkage linkage in one move. The valve has as many as three operating modes: Lock

Blocking of raising and lowering the arms when transporting tools or not using them LINKAGE

Bi-directional work

Coupling the implement (lowering the lift arms) or ground work with the front tillage roller or bulldozer. The front linkage cylinders are under pressure when raising and lowering.

One-way operation

Used on a front mower or implement equipped with jockey wheels. The front linkage cylinders are pressurized when lifting, but lowering occurs naturally (without pressure) under the weight of the implement. The lack of pressure when lowering ensures that the tool is placed on the ground without any disruptions.

Technical data:

Maximum flow: 40L/min

Connections: M18x1.5

Number of hydraulic holes in the body: 3

Internal threads in the body: 3/4'' - 16 UNF

Material: galvanized steel

Parts internal: ground

Maximum permissible pressure: 210 bar

Weight: 1.830 kg

Temperature range and oil type:

Permissible ambient temperature : -20 C to +80 C

Permissible oil temperature: -15 C to +80 C

Oil type: Mineral oil-based hydraulic oil
