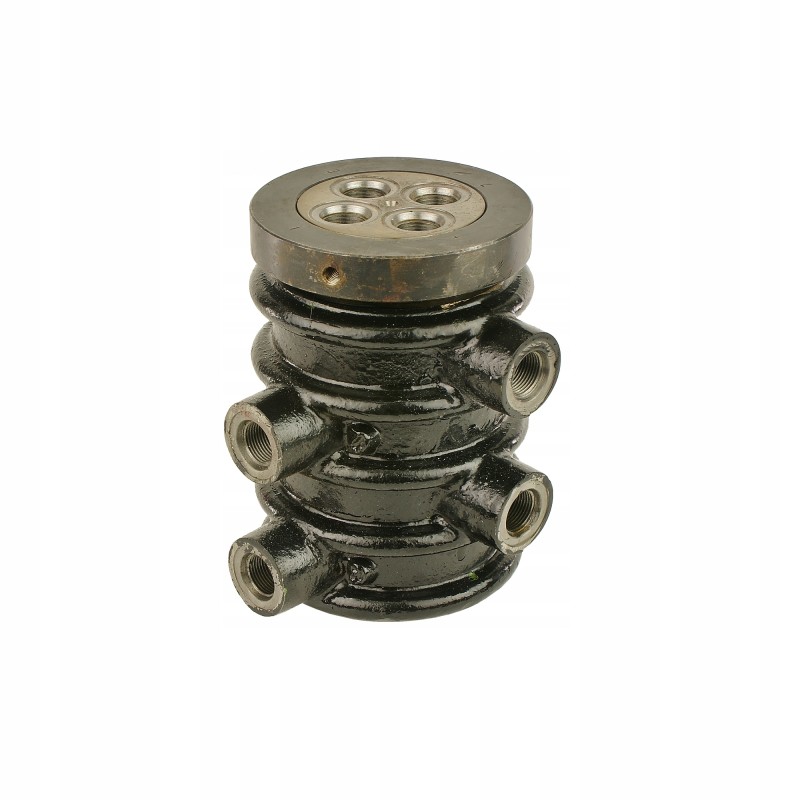

Universal hydraulic swivel connector, 2 sections

UNIVERSAL 4-WAY HYDRAULIC SWIVEL CONNECTORProduction:

Original product of the Hydrolider brand, manufacturer's symbols: 1.60.06.140

Application:

It is widely used in hydraulic systems in construction, agriculture and industry. Used in machines and vehicles with a rotating body or other rotating sections.

The rotating joint is an excellent hydraulic and structural solution. Used in the machine, it allows two structural elements that are part of the same hydraulic system to turn and rotate independently and freely while maintaining full tightness of the oil flow. It also protects the hoses against twisting, abrasion and other possible mechanical damage.

The connector has four inputs and four outputs enabling the connection of e.g. two sections from the distributor and redirecting the oil to two double-acting cylinders.

TECHNICAL DATA:

Connection ports: M20x1.5

Maximum flow on one hydraulic line: 40 L/min

Maximum operating pressure: 160 bar< p>

Maximum working pressure during rotation: 120 bar

Rotation direction: any

Rotation range: unlimited

Maximum number of full revolutions per minute for continuous operation: 5

Material: cast iron

TEMPERATURE AND TYPE OF WORKING LIQUID:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +110 C

Recommended hydraulic oil: mineral oil, e.g. HL 32 or HL 46

Recommended oil filtration at the level of 10 - 25 µ< p>
