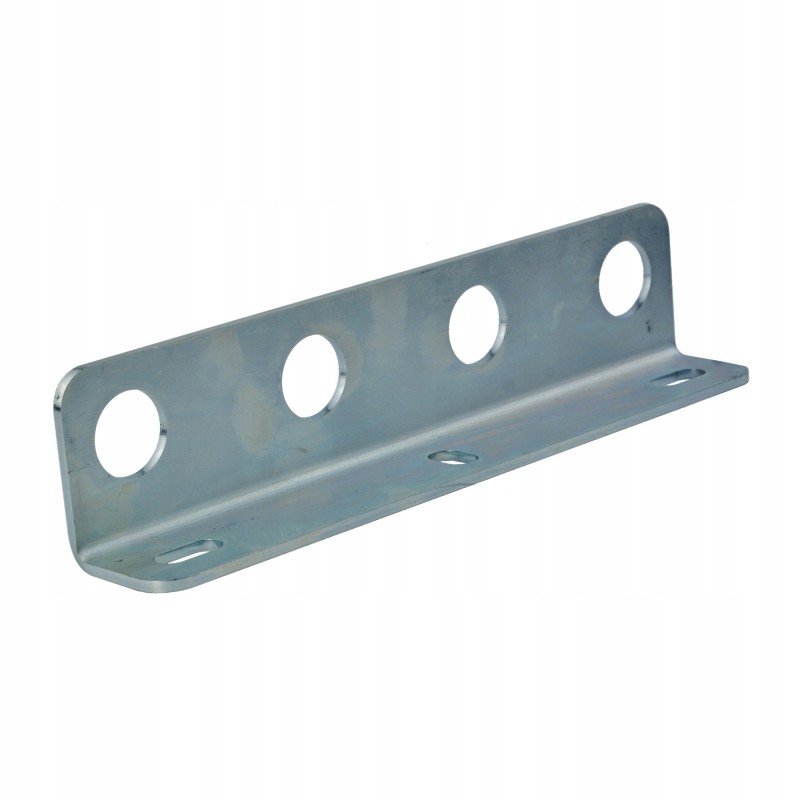

BOARD FOR MOUNTING FOUR QUICK CONNECTORS Production:
Original product of the Hydrolider brand, symbol: 1.60.55.904
Application:
Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.
The sheet can be screwed or welded, e.g. . Quick connectors can be attached to the board mounted in this way, which makes it easier to connect or disconnect turn components.
The plate is intended for mounting quick connectors, bulkhead sockets and plugs. Fits quick connectors with metric threads: M14, M16, M18, M22, and inch threads: 3/8', 1/2'
Example of use, installation of four quick connectors for Euro-type sockets with dust caps:
Material:
steel sheet
Material weldable:
YES
Sheet thickness:
3mm
