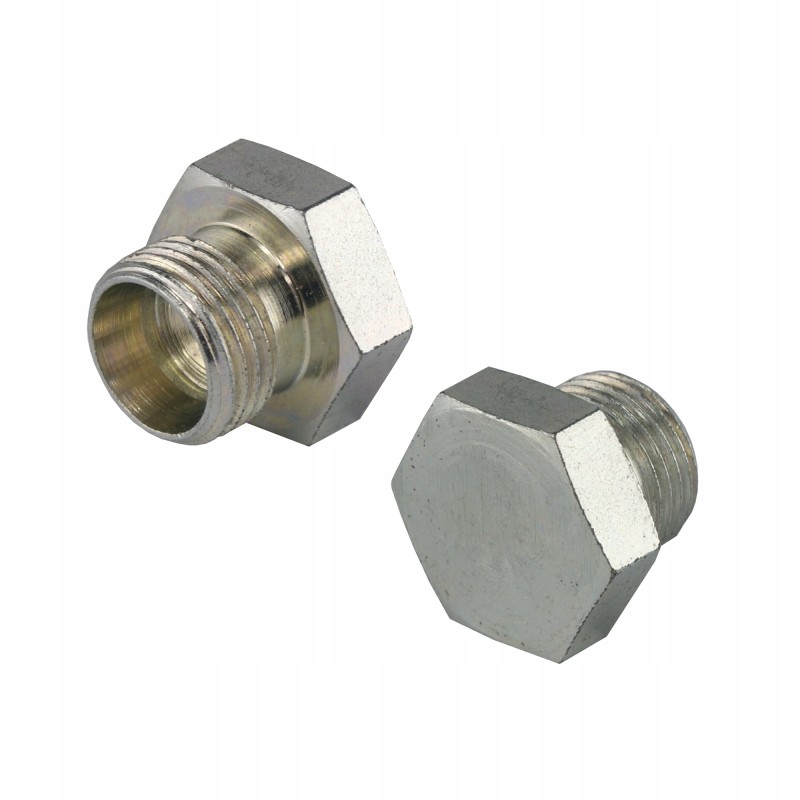

Gz M18x1 5 plug for blanking the hydrolider conduit

METRIC PLUG 18x1.5 BLINDING HYDRAULIC HOSE Production:

Original product of the Hydrolider brand, symbol: 1.60.59.118

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The plug is used to plug the ends of hydraulic pipes or other connectors ended with a nut with a conical self-sealing clamp when tightening.

Helpful data:

M18x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 17.6 - 17.9

Inner diameter [mm]: 16, 2 - 16.6

Example application:

Technical data:

Clamping cone angle: 24° (typical for the Polish standard)

Plug with a hexagonal head, screwed on with a 24 wrench

Recommended fluid type: hydraulic oil.

Thread: external metric 18x1 .5

Material:

welded steel, galvanized, corrosion-resistant
