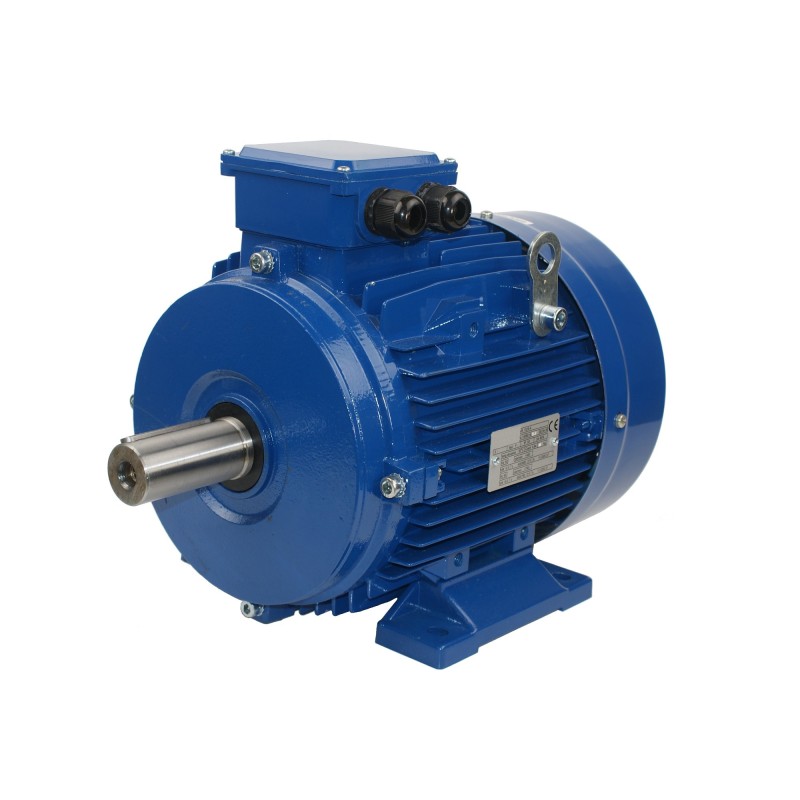

Engine 400v b3 3kw g100l 1420rpm hydrolider

3-PHASE 400V 3kWAP ELECTRIC MOTOR Production:

Original product of the Hydrolider brand, symbol: 1.42.11.030

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

General-purpose engines, suitable for work continuous in industry and agriculture. In hydraulic systems, used to drive pumps. In mechanical systems, to put other system components into rotation.

It is possible to install external cooling or a handbrake on the engines.

Technical data:

Type: AHC 100L 2-4

Power (kW): 3.0

Rated torque (Nm ): 20.1

Current (A): 6.47

Voltage (V): 400

Rotation speed (rpm): 1420

Direction of rotation: right or left

Drive shaft diameter (mm): 28

Key on shaft: yes

Sealing: IP55 on both sides

Collar for mounting the bell connector: no

Mounting claws: yes

Weight (kg): 24.7

Housing: aluminum

Winding: copper

Depending on the delivery, the motors are shipped in blue or silver.
