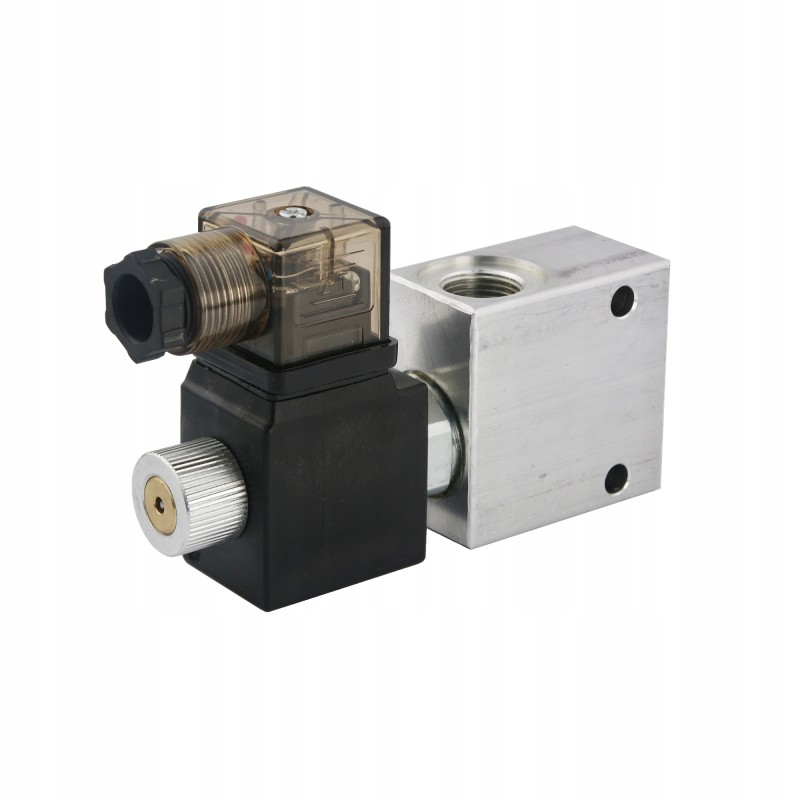

Electric valve b2s no 2 2 3 4 230v 140l 350bar 2mp

TWO-WAY ELECTRIC VALVE 2/2 3/4' WITH BLOCKAGE OF FLOW IN BOTH SIDES TYPE: NORMALLY OPEN Production:

Original product of the Oleodinamica 2MP brand, symbol: 1.35.32.021

Application:

Widely used in hydraulic systems in agriculture, construction and industry.

Two-way valve, electrically controlled 230V, is used to cut off or open the flow in the system.

Technical data:

Power supply: 230V

Maximum flow: 140 l/min

Number of hydraulic holes in the body: 2

Internal threads in the body: [BSP] 3/ 4'

Body material: aluminum

Permissible maximum pressure: 350 bar

Temperature range and oil type:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Oil type: Oil hydraulic based on mineral oil

Principle of operation:

In powerless mode, the oil flows freely in both directions. In the downstream mode, the flow in both directions is unconditionally blocked.

Connect 1 and 2 to the line where there is a need to close and open the flow.

Hydraulic diagram of a 2/2 normally open electric valve (photo):
