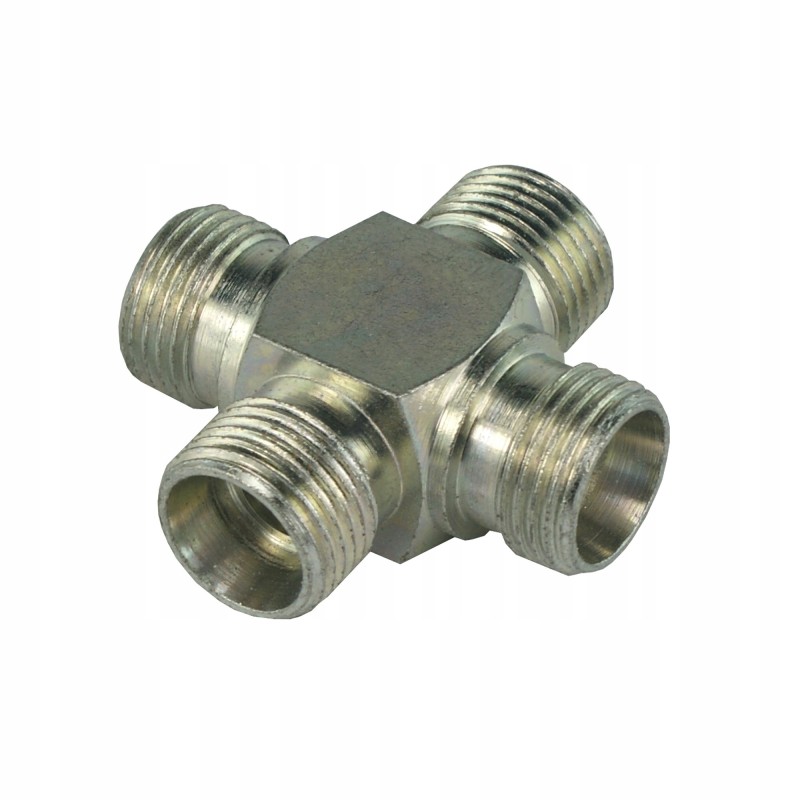

Connector BBBB 4x M16x1 5 hydrolider

HYDRAULIC FOUR CONNECTORBBBB 16/16/16/16 Production:

Hydrolider, symbol: 1.60.58.006

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Four-piece connector, standardized light version with conical clamping self-seal when tightening. Designed to connect four hydraulic lines or to connect with other connectors with the same conical system.

It does not have rubber seals or places for a seal, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. For this purpose, there are connections that can be purchased at our other auctions.

Helpful data:

M16x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 15.6 - 15.9

Inner diameter [mm]: 14.2 - 14.6

Technical data:

Clamping cone angle: 24° (typical for the Polish standard)

Nominal passage diameter: 8mm

Thread on all sides: external metric 16x1.5

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant
