Connector: AAAA 4x M22x1 5 hydrolider

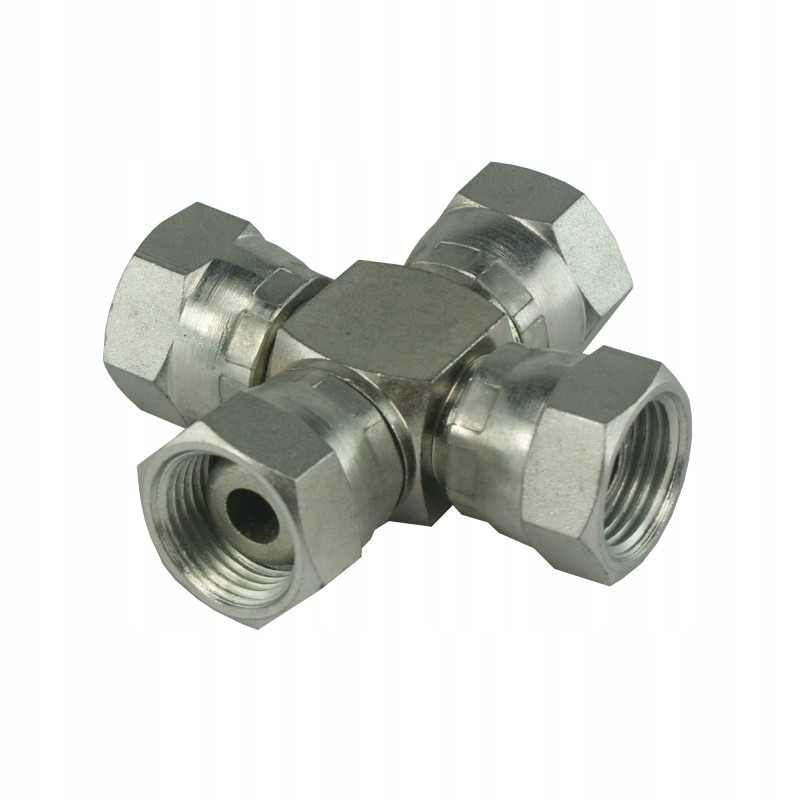

HYDRAULIC QUARTER CONNECTORAAAA 22/22/22/22 Production:

Hydrolider, symbol: 1.60.58.022

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Quad coupling, standardized light version with conical clamping self-seal when tightening. Designed to connect four hydraulic lines or to connect with other connectors with the same conical system.

It does not have rubber seals or places for a seal, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. For this purpose, there are connections that can be purchased at our other auctions.

Helpful data:

M22x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 21.6 - 21.9

Inner diameter [mm]: 20.2 - 20.6

Technical data:

Clamping cone angle: 24° (typical for the Polish standard)

Nominal passage diameter: 12mm

Thread on all sides: internal metric 22x1.5

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant
