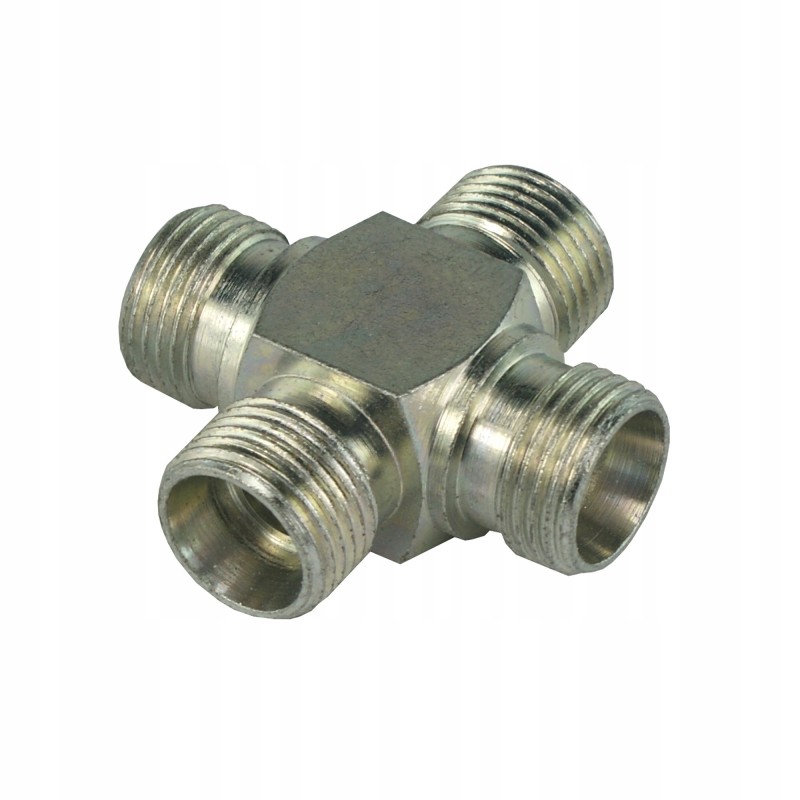

Connector BBBB 4x M18x1 5 hydrolider

HYDRAULIC FOUR CONNECTORBBBB 18/18/18/18 Production:

Hydrolider, symbol: 1.60.58.009

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Four-piece connector, standardized light version with conical clamping self-seal when tightening. Designed to connect four hydraulic lines or to connect with other connectors with the same conical system.

It does not have rubber seals or places for a seal, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. For this purpose, there are connections that can be purchased at our other auctions.

Helpful data:

Thread diameter M18x1.5 measured with a caliper:

Outer diameter [mm]: 17.6 - 17.9

Inner diameter [mm]: 16.2 - 16.6

Technical data:

Clamping cone angle: 24° (typical for the Polish standard)

Nominal passage diameter: 10mm

Thread on all sides: external metric 18x1.5

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant
