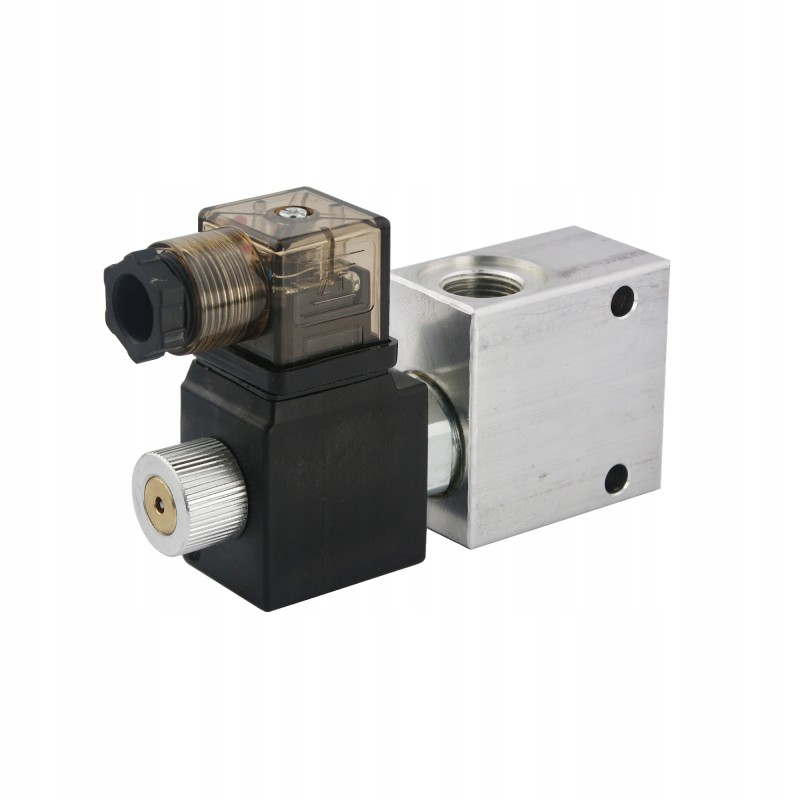

Electric valve b2s nz 2 2 3 4 24v 140l 350bar 2mp

TWO-WAY ELECTRIC VALVE 3/4' WITH BLOCKAGE OF FLOW IN BOTH SIDES TYPE 2/2 NORMALLY CLOSED Production:

Original product of the Oleodinamica 2MP brand, symbol: 1.35.30.021

Application:

Widely used in hydraulic systems in agriculture, construction and industry.

Valve two-way, electrically controlled 24V, used to cut off or open the flow in the system.

Technical data:

Power supply: 24V

Maximum flow: 140 l/min

Number of hydraulic holes in the body: 2

Internal threads in the body: [BSP] 3/4 '

Body material: aluminum

Permissible maximum pressure: 350 bar

Weight: 1.075 kg

Temperature range and oil type:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Oil type: Mineral oil-based hydraulic oil

Operating principle:

Valve type: normally closed, i.e. without current, the flow is unconditionally blocked in both directions. After applying the current, the flow is free in both directions.

Connect 1 and 2 to the line where there is a need to close and open the flow.

Hydraulic diagram of a 2/2 normally closed electric valve (photo):
