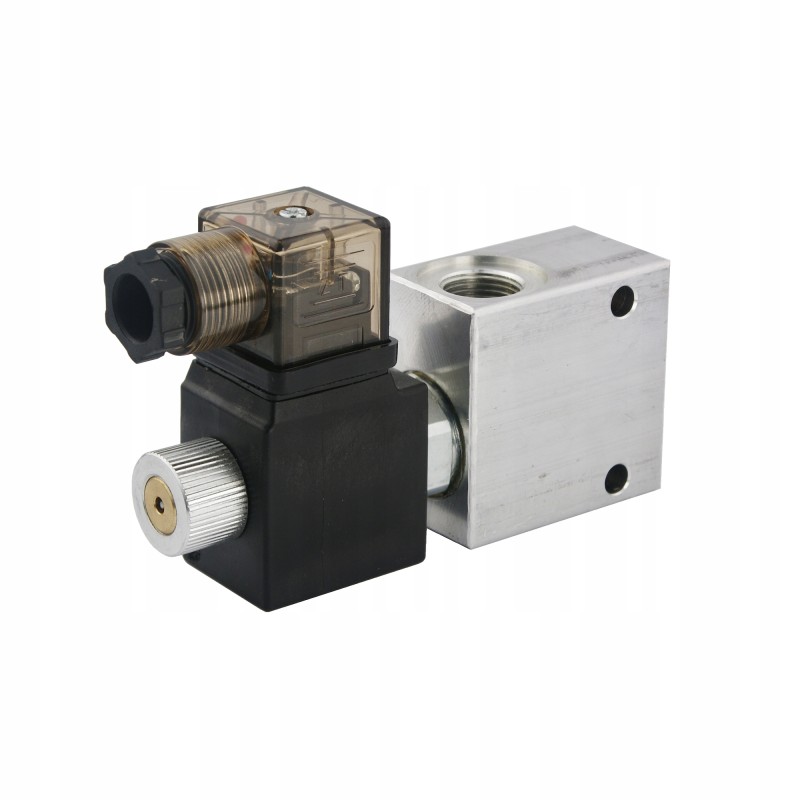

Electric valve b2s nz 2 2 3 4 12v 140l 350bar 2mp

TWO-WAY ELECTRIC VALVE 3/4' TYPE 2/2 NORMALLY CLOSED

Production:

Oleodinamica 2MP Italy, symbol: 1.35.29.020

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

A 12V electrically controlled two-way valve, 'close/open' type, is used to open the oil flow on a single hydraulic line.

Technical data:

Power supply: 12V Maximum flow: 140 l/min Number of hydraulic holes in the body: 2 Internal threads in the body: [BSP] 3/4' Body material: aluminum Permissible maximum pressure: 350 bar Weight: 0.430 kg

Temperature range and oil type:

Permissible ambient temperature: -40 C to +60 C Permissible oil temperature: -15 C to +80 C Oil type: Mineral oil-based hydraulic oil

Connection:

Connect 1 and 2 to the line where it is necessary to close and open the flow.

Principle of operation:

Normally closed valve, in de-energized mode the flow is blocked with 2 to 1, and free from 1 to 2. After applying current, the flow is free in both directions.

Hydraulic diagram of a 2/2 normally closed electric valve (photo):
