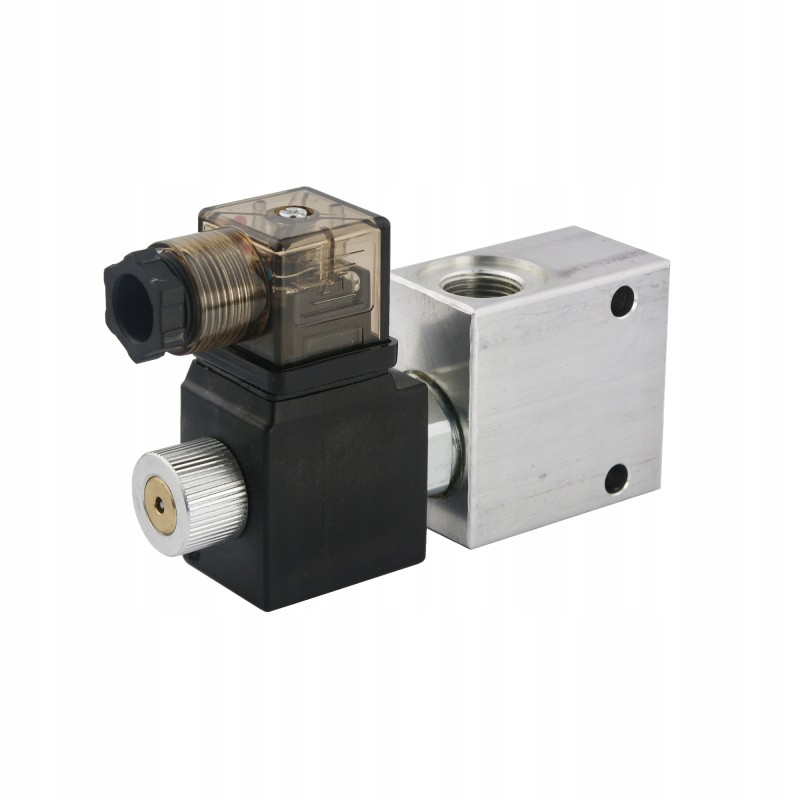

Electric valve b2s nz 2 2 1 2 24v 70l 350bar 2mp

TWO-WAY ELECTRIC VALVE 1/2' TYPE 2/2 NORMALLY CLOSED Production:

Original product of the Oleodinamica 2MP brand, symbol: 1.35.30.015

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

A 24V electrically controlled two-way valve, 'close/open' type, is used to open the oil flow on a single hydraulic line.

Technical data:

Power supply: 24V

Maximum flow: 70 l/min

Number of hydraulic holes in the body: 2

Internal threads in body: [BSP] 1/2'

Body material: aluminum

Permissible maximum pressure: 350 bar

Weight: 0.725 kg

Temperature range and oil type:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Oil type: Mineral oil based hydraulic oil

Connection:

Connect 1 and 2 to the line where there is a need to close and open the flow.

Principle of operation:

Normally closed valve, in de-energized mode the flow is blocked from 2 to 1, and free from 1 to 2. After applying current, the flow is free in both directions.

Hydraulic diagram of a 2/2 normally closed electric valve (photo):
