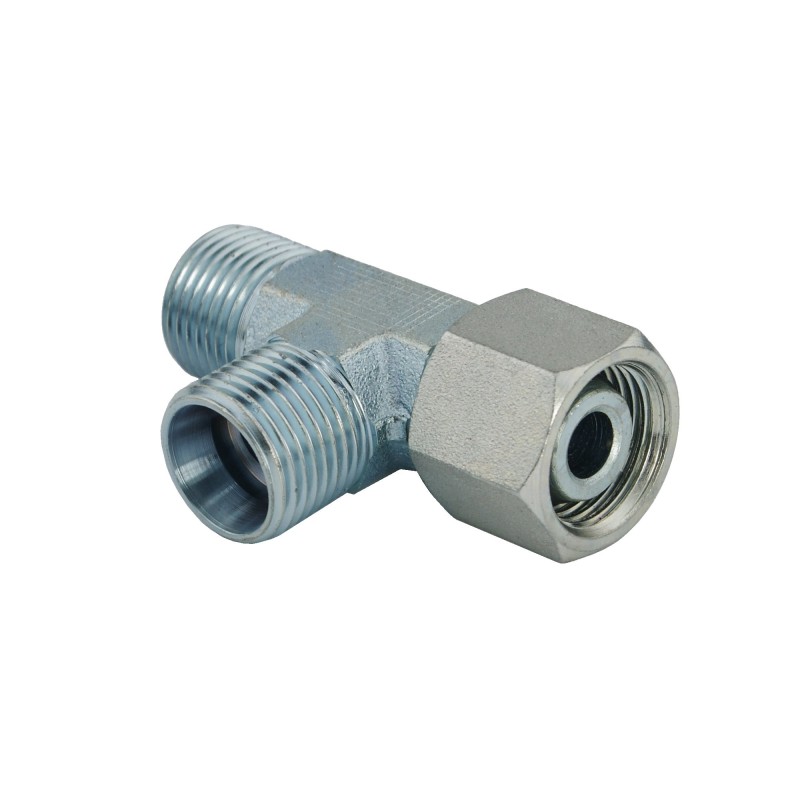

Tee connector BBA 3x M24x1 5 hydrolider

HYDRAULIC CONNECTOR, T-PIECE BBA 24/24/24 Production:

Original product of the Hydrolider brand, symbol: 1.60.57.032.1

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Tee connector, Standardized light version with conical self-seal when tightening. Designed to connect three hydraulic lines or to connect with other connectors with the same conical system.

It does not have rubber seals or places for a seal, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. For this purpose, there are connections that can be purchased at our other auctions.

Helpful data:

M24x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 23.6 - 23.9

Inner diameter [mm]: 22.2 - 22.6

Technical data:

Clamping cone angle: 24° (typical for the Polish standard)

Nominal diameter of the passage: 12mm

Thread on the foot and on one side: external metric 24x1.5

Thread on the other side: internal metric 24x1.5

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Fluid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant
