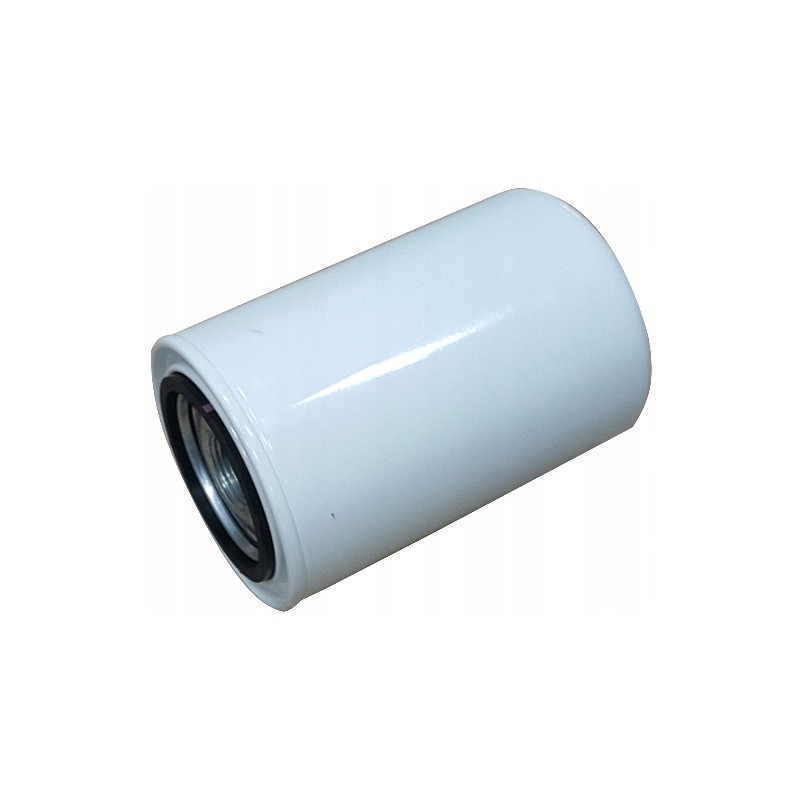

Insert hydraulic suction filter 80l 3 4

OIL FILTER insert with a flow of 80L/min SKRAW-MET CODE: [1783]Filter installed in external hydraulic systems, on the suction line.

It has a very wide range of applications in hydraulics, it protects delicate components of the set such as the pump and distributor against damage.

It can be mounted directly to the tank.

The filter is equipped with a special so-called bypass valve, which ensures bypass of the oil stream in case of dirt and blockage of the filter mesh.

The valve is activated at a pressure of 1.7 bar and protects the filter against bursting.

Dimensions: - A II - 3 /4'- B - 95mm- C - 192mm Technical specifications: Internal thread: 3/4'

flow: 80L/min - oil with a density of 30 CST (equivalent to HL 30)

Filtration: 25µ

Max. pressure: 12bar

Burst pressure: 25bar

Bypass valve pressure: 1.7bar

We recommend selecting filters with a relatively higher flow than required in a given hydraulic system.

The reason for this is that the use of thick oil or quite low, negative temperature may cause flow reduction by up to 40%.
