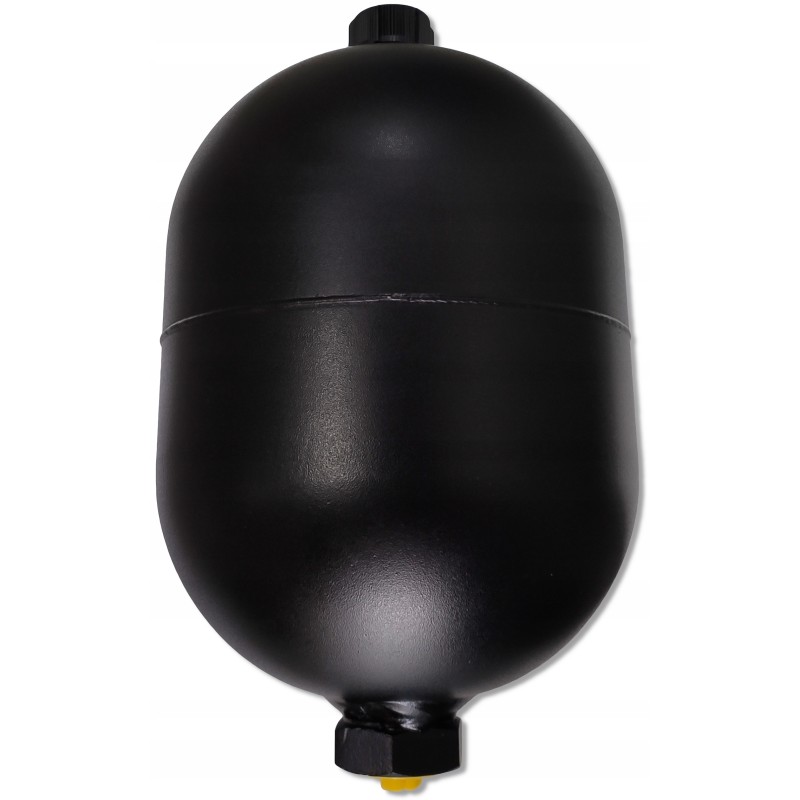

Hydraulic shock absorber 2 8l 3 4 up to 210 bar

Hydraulic shock absorber MEMBRANE hydroaccumulator HDA 2.8LKODE SKRAW MET: [2440] Manufacturer: SM-G (SKRAW MET GROUP) AT THE CUSTOMER'S REQUEST REGULATION TO THE INDICATED PRESSURE - FREE OF CHARGE

Perfect for hydraulically powered machines and devices.

Can be used in agriculture , horticulture, forestry and construction.

They are used in TUR front loaders, agricultural machines, plows, aggregates, construction machines, cranes, etc., i.e. machines exposed to sudden changes in pressure in the hydraulic system.

The role of the hydroaccumulatorThe purpose of the accumulator is to store oil under pressure in the system hydraulic system and, if necessary, its restarting in order to dampen shocks and limit pressure surges.

Its main function is performed in the following aspects: As auxiliary power

For emergency power source

Replenishing losses and maintaining constant pressure

Absorption of hydraulic shocks

Absorption of pulsations and reduction noises

Shock absorber working principle: The hydraulic accumulator is mainly composed of a hydraulic element and a gas element with a gas-tight separator.

The oil part is connected to the hydraulic flow path.

When the pressure increases, the gas is compressed and the liquid flows into the hydraulic accumulator.

When the pressure drops, the compressed gas expands and releases the saved fluid into the pipeline.

Hydroaccumulators should be selected according to the following relationships: What will be its function in the hydraulic system?

The capacity of the hydroaccumulator increases in proportion to the capacity of the cylinders.

The greater the load on the cylinders, the greater the pressure in the hydroaccumulator.

Technical specifications: Hydroaccumulators are factory-filled with nitrogen at a pressure of 60 bar. They have a built-in mechanism that allows you to safely and easily reduce the nitrogen pressure according to your needs.

Internal thread in the body: G3/4'

External thread of the gas port: M28x1.5

Total capacity of the shock absorber: 2.8L

Maximum pressure: 210 bar

Body material: cast iron

Temperature range: Permissible ambient temperature: -30°C to +80°C

Permissible oil temperature: -30°C to +80°C

Oil type: mineral oil-based hydraulic oil
