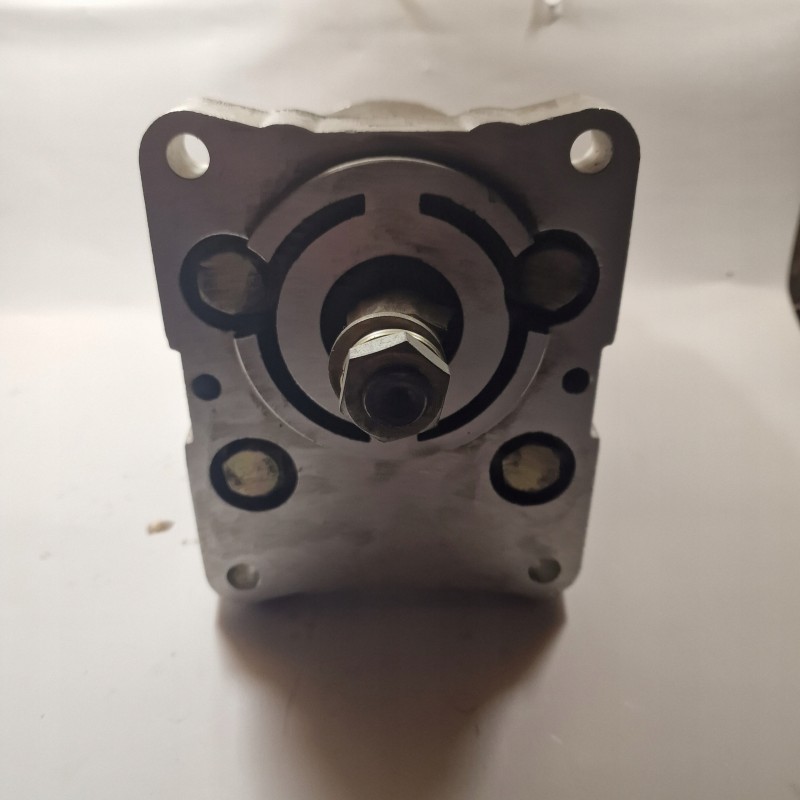

Hydraulic pump wph pz3 32 16 1 122

Technical data:

direction of rotation to the right

shaft output through the front plate

rectangular Polish plate

mounting flange 16x102x125

with 4 holes Ø9 and lock Ø80x8

geometric working volume 16 [cm3]

pressure: nominal 16 to max. 20 [MPa]

inlet -0.03 to +0.40 [MPa]

start-up min. -0.05 [MPa]

start-up conditions at negative temperatures:

rotational speed up to 1500 [rpm]

outlet pressure up to 1 [MPa]

rotational speed: 600 to 3000 [rpm]

nominal 1500 [rpm]

minimum flow 21.6 [l/min]

max. driving power 7.2 [kW] in nominal conditions

inlet pressure -0.01 to +0.01 [MPa]

and temperature 48 to 52 [°C] HL-68 oil according to PN-91/C-96057/04

nominal filtering accuracy 0.025 [mm]

ambient temperature -40 to +70 [°C]

connections: inlet and outlet 2xM27x2

splined drive shaft 18x1.25x10b acc. to PN-69/M-85010

dimensions 97x100x167.2 (with shaft drive)

the pump can be used as a high-speed hydraulic motor

with the direction of rotation to the left and the pressure at the engine outlet up to 0.5 [MPa]
