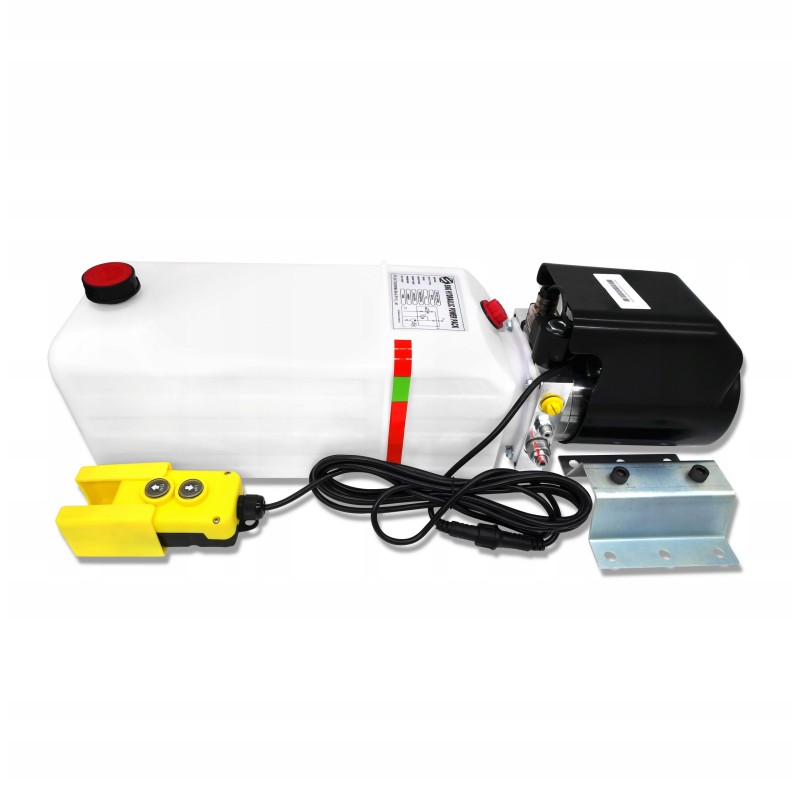

Reinforced pump power supply unit 2 0 kW 12v 11l

Hydraulic unit 12V 2.0kW SKRAW MET CODE: [0274] Manufacturer: SM-G (SKRAW MET GROUP) Allows you to control a single-acting actuator.

The actuator extends under the influence of pressure, and retracts using gravitational forces and the lifted weight.

The unit is complete and ready to work, just connect the cables and fill with oil. Recommended continuous operation for no longer than 3 minutes, restarting after 5 minutes of rest.

Application: The unit is perfect for electrically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

It is adapted for unloading work. load box in trailers, dump trucks, hydropacks, races, lifts, loading platforms, car lifts, cranes, agricultural and industrial machines.

Technical specifications: Engine power: 2.0 kW

Electrical voltage: 12 V

Oil tank capacity: 11 L

Maximum operating pressure: 180 bar

Pump capacity: 2.6 cm3/revolution, in this set 7L/min to 12L/min

Internal thread connection: 3/8'

Overflow valve (safety): YES

Dimensions: Unit length : 650 mm

Tank length: 440 mm

Unit width: 170 mm

Tank width: 170 mm

Unit height: 195 mm

Tank height (from the base to the tip of the cap): 205 mm

REMOTE WITH 2 BUTTONS Solid construction It is a dedicated remote control with two buttons, used mainly in hydraulic units powered by 12V / 24V.

Equipped with a mounting pocket that, if necessary, can be attached to two holes with a diameter of 5 mm.

There are also magnets on the back of the remote control, thanks to which the remote control can be attached to metal elements .

Additionally, the remote control contains a cable approximately 4.4 m long with a screw-on 3-pin plug.

All elements are made only of durable, high-quality materials.

A diagram of the hydraulic system operation is glued to each unit. The set includes includes: pump

electric motor

connecting plate

tank

control remote control

The unit additionally has a plastic cover for the engine and a mounting kit.

Legend of markings: + Power supply (positive potential), connected directly to the battery

- Power supply (negative potential), connected directly to the battery

A - connection port (G3/8')

B - descent speed adjustment

C - oil pressure adjustment
