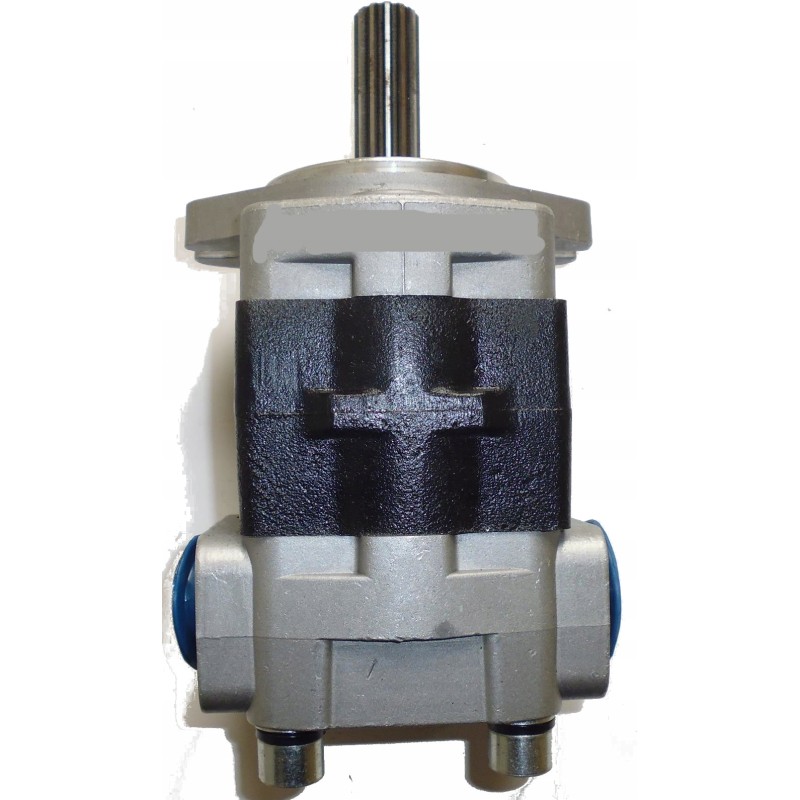

Hydraulic pump mitsubishi fd20 25 91771 00100 kfp3240ambas

HYDRAULIC PUMP FOR FORKLIFT

MITSUBISHI

F18B S4S Z=13

NO. OEM:

91771-00100

SGP2-40L

KFP3240AMBAS

---

Distance from the center of the C1 flange mounting holes (mm) 106.3

Total pump length L1 (mm) 227

Neck diameter D2 (mm) 82

Shaft type D type

Distance from flange to end L2 (mm) 71

Shaft diameter D3 (mm) 22.2

Number of teeth 13

Direction of rotation counterclockwise

Position of suction port of the 1st element, only for POS T-type pump -CO1 side

Type of connections of the suction connection, 1st element, only for T-type pump TY-COa type C

Thread type of suction connections of the 1st element M10

Distance from the center of the mounting holes C-CO1a (mm) 30.2

Distance from the center of the mounting holes C-CO2a (mm) 58.7

Position of the 1st pressure element, only for the T-type pump POS-CO2 side

Type of pressure connection of the 1st element, only for the T-type pump TY-COb type E

Thread type pressure side of the first element TA-Pb 3/4 BSP

Flow control valve present NO

Housing material metal

Specifications

Pump type gear pump

Number of elements 1

Flange type type B

Distance from the center of the mounting holes C1 (mm) 106.3

Total pump length L1 (mm) 227

Flange diameter D2 (mm) 82

Shaft type D type

Distance from flange to end L2 (mm) 71

Shaft diameter D3 (mm) 22.2

Number teeth: 13

Rotation direction counterclockwise

Distance between the centers of the mounting holes C-CO1a (mm) 30.2

Distance between the centers of the mounting holes C-CO2a (mm) 58.7

Pressure position 1. element, only for T-type pump POS-CO2 page

Type of connections pressure 1st element, only for T-type pump TY-COb type E

Thread type pressure side of 1st element TA-Pb 3/4 BSP

Present flow control valve NO

Housing material metal
